Assign Block Model

On the Grid / DTM tab, in the DTM Assign group: Click Assign Block Model to determine whether the blocks or the sub-blocks in a block model, are above, below, or either side of a DTM, based on the centroid or the block factor of the block.

For example, you might assign to determine which blocks have been mined by assigning the DTM of a pit to the block model file.

Note: Due to changes to the block model index builder in version 2020, calculated block factors may differ very slightly compared to those for the indices created in previous versions.

When running the application version 2020 Wireframe and DTM Assign functions on an older-version block model index, there may be minor changes in block factors as the plane shifts slightly. This is due to split processing changes in the 2020 release, in other words, how the triangulations are cut, and how the in-between points are interpolated.

Input

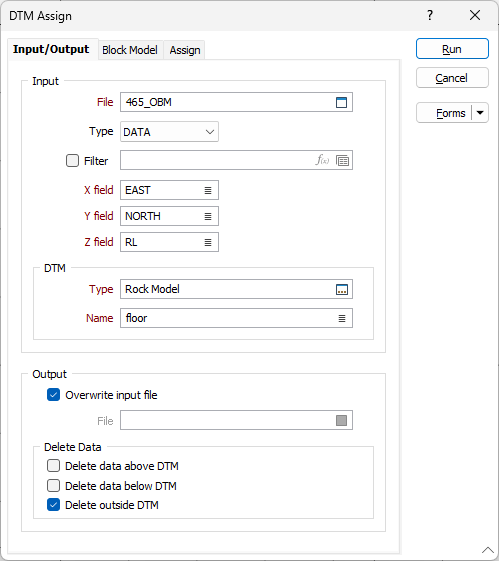

On the Input/Output tab of the DTM Assign form, specify the following parameters:

File

Double-click (or click on the Select icon) to select the name of the Input file. The default file type for Block model data is DAT. If necessary, you can apply a filter to restrict the process to a subset of the data in the file.

X, Y and Z fields

Specify the names of the fields in which Easting, Northing, and Z coordinates are stored in the Input file.

DTM

Select a wireframe that defines the Assign Region.

Type

Double-click (or click on the Select icon) to select a wireframe type. The default is DTM.

Name

Double-click (or click on the List icon) to select the name of the wireframe (of the type you have selected).

Output

You can choose to Overwrite the input file or nominate an Output file as the target file to which assigned values will be written.

If you are overwriting the Input file, records that do not pass the filter are only removed from the file when one or more of the Delete Data options are selected on the Block Model tab of the form.

Overwrite input file

Select this option to write the assigned values back to the Input file.

File

If you do not want to overwrite the Input file, select a file type and enter (or click on the Select icon to select) the name of the Output file.

Delete Data

Optionally, choose to delete data which is above, below, or outside the DTM.

Forms

Click the Forms button to select and open a saved form set, or if a form set has been loaded, save the current form set.

Run

When you have specified input and output parameters and setup the values to assign to the attributes of the DTM, click Run to begin the Assign process.
