Modify Range Dependency By Animation
This option is also available on the right-click context menu (in the Animation Window).

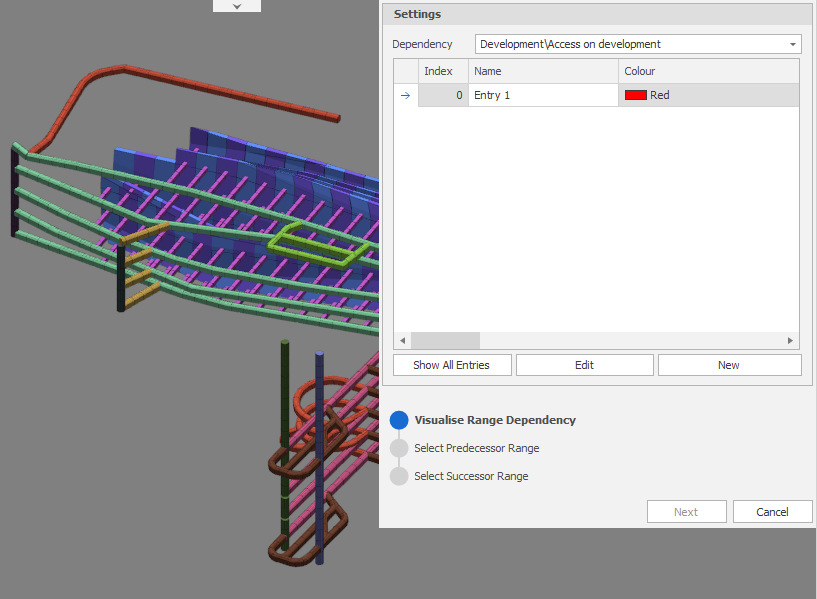

Visualise Dependency Range
The first step in the process is to visualise the dependency range.
Settings
Setup one or more Range Dependency Entries for a selected Range Dependency.
Dependency
The Range Dependency that was last edited (if any) is selected by default. If necessary, you can use the drop-down control to select a different dependency.
If you are Modifying a Range Dependency for the first time, choose a dependency from the Dependencies that have been setup for the current case.
Dependency Entries
Existing Range Dependency Entries (if any) are listed here. If you are Modifying a Range Dependency for the first time, a new dependency entry "Entry 1" is created for you and is added to the Entries list.
Entries in the list can be renamed. Click on the Name of an entry to rename it.
Show All Entries
Click this button to show all Range Dependency Entries in the Animation Window. The Animation Window is zoomed to the extents of all entries.
Edit
Click Edit to set the Selection Mode and the Selection Level that will be used to interactively pick a Predecessor Range and a Successor Range. For more information, see: Edit
New Entry
Click New to add a new dependency entry to the list.
Remove Entry

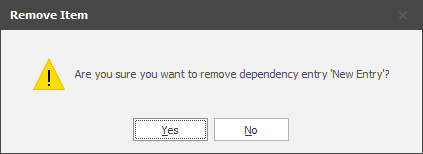

To remove a dependency entry from the list, select that entry in the list of entries and press the Delete key. You will prompted to confirm the removal of the dependency entry:
