Output

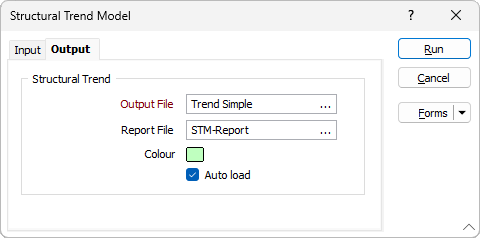

On the Output tab of the Structural Trend Model form, specify the name of an Output file and a Report file.
Since the model has been optimised for Implicit Modelling, the output file can be used as an input when the Structural Trend File weighting option is selected as a parameter in various implicit modelling functions.
Output File
Enter (or click on the ellipsis button to select) the name of an (*.mmstf) Structural Trend File.
Report File
Enter (or click on the ellipsis button to select) the name of a Report file.
Colour
Use the Colour box to open the Colour Selection dialog and select a colour for the structural trend model.
Auto load
Select this option to load the generated output in Vizex.
Run
When you have configured the parameters on the form, click Run to execute the process.
