Edit Properties

On the Mining | Pit Design tab, in the Ramp group: Click Edit Properties to edit the properties of a haul road or ramp.

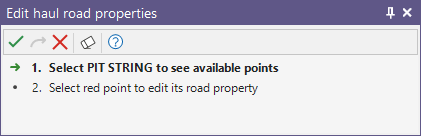

Alternatively, right-click on a red road point and select Road | Properties from the right-click menu. If not already selected, you will be prompted to select a PIT STRING:

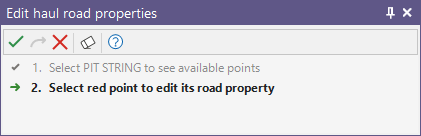

If not already selected, you will be prompted to select a red road point:

You can also edit a road by selecting one of the following options on the Vizex right-click Road menu:

None

When you right-click on an ordinary point (i.e. a blue point that is not a road point), the None option is selected. You can end a road by clicking on a road point and then selecting this option.

Road <Form Set>

When you save the properties of a road as a form set (using the Forms button in the Road Properties form) the name of that form set will be available under the Road right-click menu. This provides a quick way of setting the properties of a road using known parameters.
