Export Road Network

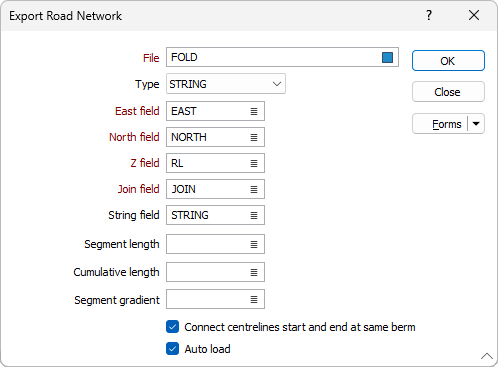

On the Mining | Pit Design tab, in the Export group: Click the Export Road Network button to export the centrelines of the Pit Design roads.

The Export Road Network tool will export the centrelines of your pit design as a String (.STR) file containing all the information about the string pit type, ramp name and so on in the String field.

This makes it possible to use the exported file in Pit Design (Manual) if required, or with other functions in Micromine Origin & Beyond (for example Incremental Solids in Mining | Task Preparation) or third-party products.

File

Double click (F3) to select the string File from which to export the ramp centrelines.

East, North, Z Fields

Use the fields provided to specify the names of the Easting, Northing and Z coordinate fields in the string file.

Join field

Use the field provided to select the Join field for the string file.

String field

Use the field provided to specify the String field in the file.

Segment length

Use the field provided to select the Segment lengthfield in the string file.

Cumulative length

Use the field select to select the Cumulative lengthfield in the string file.

Segment gradient

Use the field select to select the Segment gradientfield in the string file.

Connect centrelines start and end at same berm

Select the check box if you want the start and end of centrelines in the export to be connected at the same berm.

Auto load

Select the Auto Load check box if the exported pit ramps should be automatically loaded in Vizex.

Forms

Click the Forms button to select and open a saved form set, or if a form set has been loaded, save the current form set.

OK

Click OK to generate the pit shell.
