Export Pit Strings

On the Mining | Pit Design tab, in the Export group: Click the Export Pit Strings button to export the whole Pit Design (Dynamic) as a Pit Design (Manual) .PIT file or String (.STR) file.

The Export Pit Strings tool will export the pit design as a manual pit design file (.PIT) containing all the information for the design.

You can also opt to export the design as a String file with the information for the pit design included.

This makes it possible to use the exported file in Pit Design (Manual) if required, or with other functions in Micromine Origin & Beyond (for example Incremental Solids in Mining | Task Preparation) or third-party products.

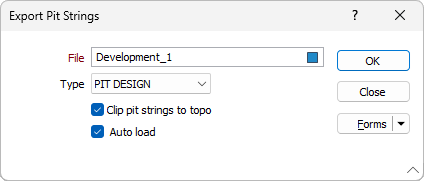

File

Double click (F3) to select the string File from which to export the pit design.

Type

Use the Type drop down to select whether to export the pit design as a Pit Design (Manual) (.PIT) file or a String (.STR) file.

Clip pit strings to topo

Select the option to clip the pit strings to the topography. Only the pit strings that lie on the pit shell DTM (clipped to topo) are exported. Some polygons will be converted to polylines.

Auto load

Select the Auto Load check box if the exported pit design should be automatically loaded in Vizex.

Forms

Click the Forms button to select and open a saved form set, or if a form set has been loaded, save the current form set.

OK

Click OK to generate the pit shell.
