Setup Wireframes

On the Grade Control tab, in the Grade Control group: When wireframes are generated as a result of the grade control calculation, select Setup (Wireframe) to configure their attributes.

When polygons are used to define the ore and waste parcels, you can use the options on the Wireframe Output tab (or click the Setup (Wireframes) button on the Grade Control tab, in the Grade Control group) to save the wireframes generated as a result of the grade control calculation. These wireframes can be used for subsequent planning tasks.

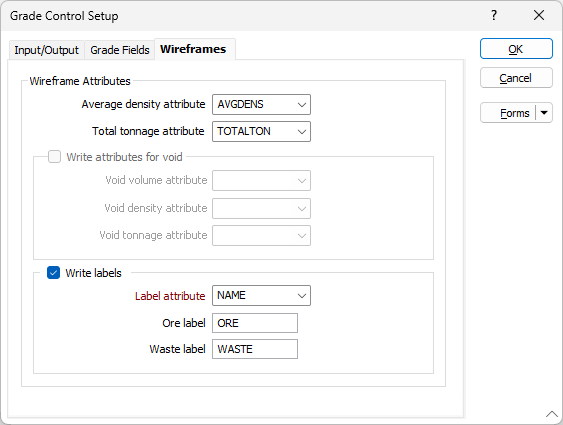

Wireframe Attributes

Note: For Imperial projects, Density and Void Density inputs are replaced with Tonnage Factor inputs and grade calculations will treat these values accordingly.

Average density attribute

Select the Average density attribute field that will be used to write the calculated average density to a wireframe attribute for the assignment.

Total tonnage attribute

Select the Total tonnage attribute field that will be used to write the calculated total tonnage to a wireframe attribute for the assignment.

Write attributes for void

Enable the check box to select the attributes of the output .tridb file on which the estimation relating to Void volume, Void density and Void tonnage will be written. The void is the extra volume between the block model and the wireframe. Generally, the wireframe encloses the block model, but often there are little gaps between the two (these gaps are the void).

Write labels

Select this option to write Ore and Waste label values as user-defined attributes of the output wireframes.

Label attribute

Use the drop down list to select a Label attribute.

Ore label

Enter the code that will be written to the label attribute when the block is Ore.

Waste label

Enter the code that will be written to the label attribute when the block is Waste.
