To Block Model

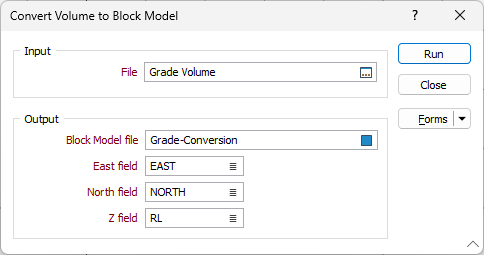

On the File tab, in the Convert group: Select Volume | To Block Model to convert a volume file to a block model file (.mmbdf).

Input

File

Double click (or click on the Select icon) to select the volume File you want to convert to a block model.

Output

Block Model file

Double-click (or click on the Select icon) to select the name of the output Block Model (*.DAT) file.

Easting, Northing and Z fields

Specify Easting, Northing and Z coordinate fields for each file.

To view the output from this function:

• On the Home tab or the Vizex tab, in the Layer group, select Display Layers > Block Model .

Run

Finally, click the Run button to run the Conversion using the parameters you have defined.
