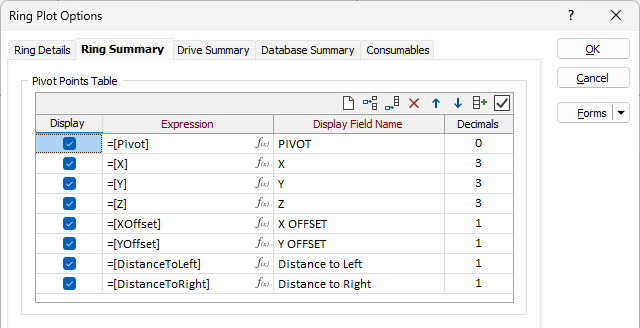

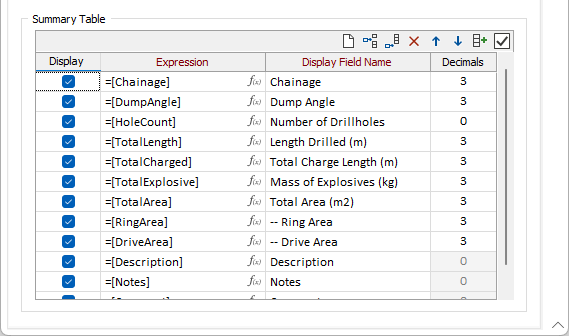

Ring Summary
On the Ring Summary tab of the Ring Plot Options form, choose which pivot point information and ring summary totals to include in (or excluded from) the plot.
Display
Select these check boxes to enable or disable the display of the summary fields listed. To display all fields, select the Select All check box.
Display Field Name
This column displays the name of the field as it will be displayed in the blast design plot. To edit the display name for a field, double-click on the cell to make it editable.
Decimals
This column displays the number of decimal places to which the value for the field will be displayed. Where applicable, you can click inside the Decimals column and change the number of decimals to be used.
  |
Click to Move selected rows Up or Down. |
|
Click Autofill to reset the list of fields and their default values. |
To edit the Display Name for a field, double-click on the cell to make it editable.
