Export Drive Wireframe

On the Mining | Ring Design tab, in the Import/Export group: Click Export Drive Wireframe, to generate a wireframe and save a selected drive and centreline string file for the selected ring design drive.

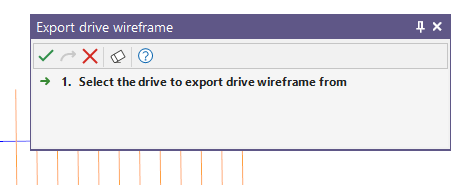

A Ring Design layer must be open in Vizex and be the active layer. You will be prompted to select the drive you want to export:

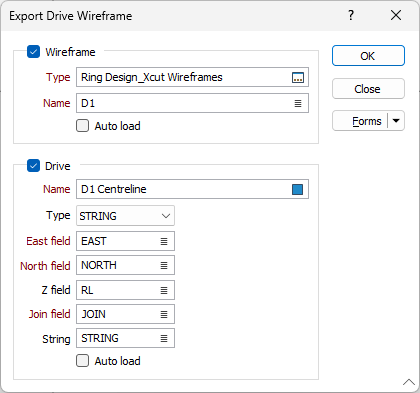

Click the Accept button. The dialog is opened:

Wireframe

Type and Name

Double-click (F3) to select the Type and the Name of the output wireframe.

Auto load

Select this option to load the generated output in Vizex. The default draw style for an auto-loaded wireframe is 3D Shaded.

Drive

Select a file Type and then double-click (F3) to select the input File that the centreline of the drive that will be used to update the ring design drive.

X, Y fields

Double-click (F3) to specify the names of the fields in which Easting and Northing coordinates are stored.

Z field

(Optional) Double-click (F3) to specify the names of the fields in which Z elevation coordinates are stored.

Join field

In forms that require polylines as an input, the values in this field define whether the data points in the input file should be joined by a line. If successive records have the same value in this field, a line will join the points. If two-factor topology is required, the values in a String field may also be used to segment the lines.

String field

In most forms, the String field is an optional generic attribute used to store a secondary input such as a code. Traditionally, this field has also been used with the Join field to define whether data points should be joined by a line, or strung, hence the name.

Auto load

Select this option to load the generated output in Vizex. The default draw style for an auto-loaded wireframe is 3D Shaded.
