Orientation Edit

On the Vein Intercepts tab, in the Edit group: In Oriented Discs mode, click Orientation Edit to edit the orientation of any selected interval/s.

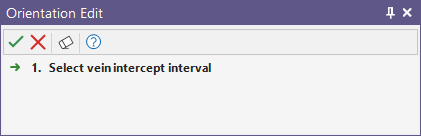

If you have not already selected an interval, you will be prompted to do so by the Selection Assistant :

1. Select the interval to edit and click Select.

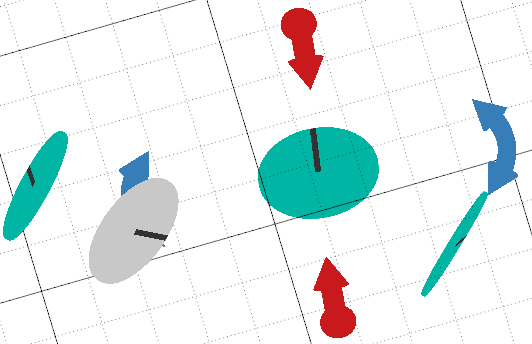

   The edit controls will appear for the selected interval.



You can change either the Dip or the Dip Direction for the orientation with the controls. Each change will require the Orientation Edit tool to be used again.

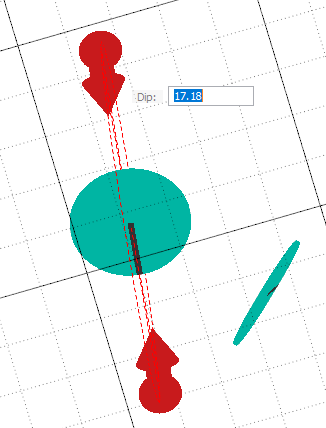

2. Drag the red arrows to change the Dip value for the orientation:

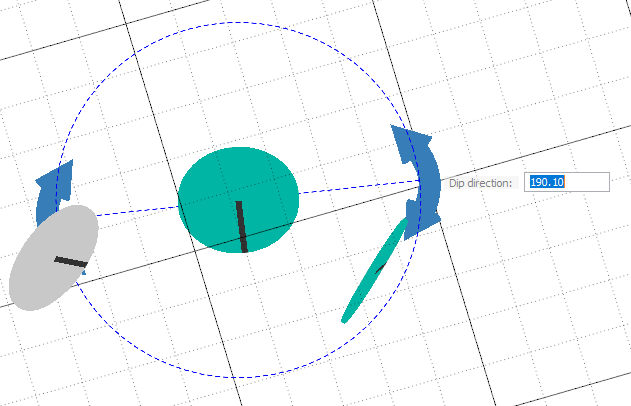

3. OR use the blue arrows to modify the Dip Direction for the orientation:
