Output

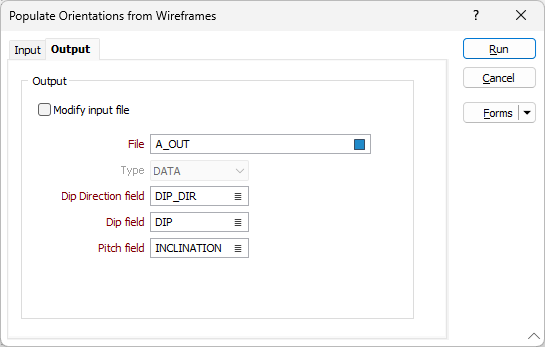

On the Output tab of the Populate Block Model Orientations from Wireframes form, the output information can be configured.
Modify input file
Select this option if you want to write the output data back to the Input file. If this option is not selected, the details for a new output file to be created can be configured.
File
Select a file type and double-click (F3) to select the Output file.
Dip Direction field
Select the field in the Output file where the dip direction information will be stored.
Dip field
Select the field in the Output file where the dip information will be stored.
Pitch field
Select the field in the Output file where the pitch information will be stored.
Run
When you have configured the parameters on the form, click Run to execute the process.

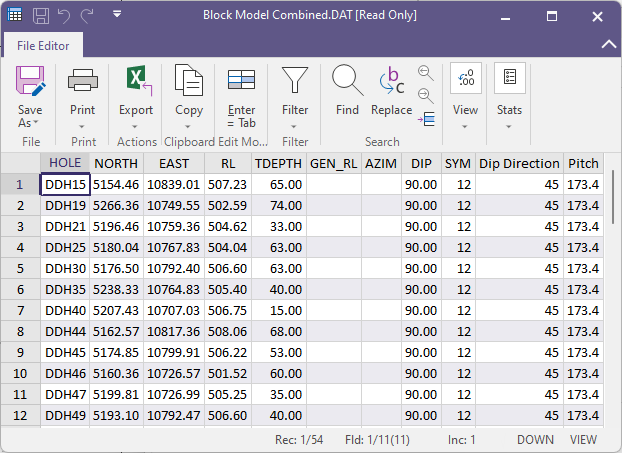

When the process is complete, you can right click in the Output File field and select View to view the output results:
