Display Options

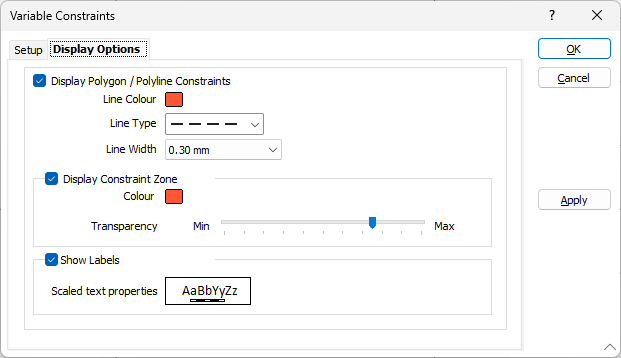

The display settings for Polygon / Polyline Constraints and the Constraint area can be set using the options on the Display Options tab.
Display Polygon / Polyline Constraints
Select the Display Polygon / Polyline Constraints option to enable the display of polygon / polyline constraints in your design.
Line Colour
Double-click on the colour icon, to select a colour used to display the polyline constraint line in the pit design display.
Line type
Select a line type. A preview of each line type is shown in the drop-down list. A variety of solid, dotted, and dashed line styles are available for selection.
Line width
Select a (THIN, MEDIUM, THICK, or custom) line width from the drop-down list. An extensive selection of custom widths (in millimetres) are available for selection.
Display Constraint Zone
Select the Display Constraint Zone option to enable the display of the surface area of the polygon constraints in your design.
Colour
Double-click on the Colour icon, to select a colour used to display the area for the polygon constraint in the pit design display.
Transparency
Use the Transparency slider (0 - 100%) to specify the intensity of the polygon surface. Whether the layers displayed below the surface are visible, will depend upon the degree of transparency you select.
Show Labels
Select the Show Labels option to display labels for the constraints in the pit design.
Scaled Text Properties
Double click to set the Text Properties for the displayed labels.
On the Advanced tab of the Text Properties form, you can set the Halo, and Border and Anchor, settings for the text labels.

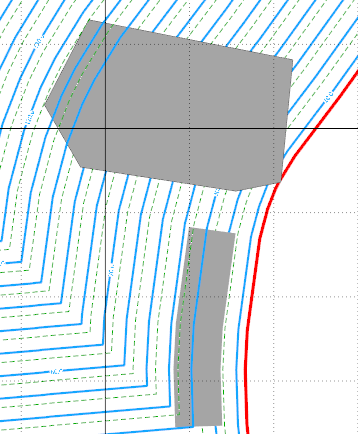

When you click OK or Apply in the Variable Constraints list, the polyline constraints and constraint area will be displayed as configured in the Display Options tab:
