Create Collar and Survey Files

On the Drillhole tab, in the Data group: Click Create Collar/Survey Files to convert drillhole strings into a standard Collar and Survey file.

To simplify the creation of the Collar and Survey files (and stay consistent with existing drillholes), the application obtains the field definitions from a template drillhole database. This database must exist, but does not necessarily need to contain data.

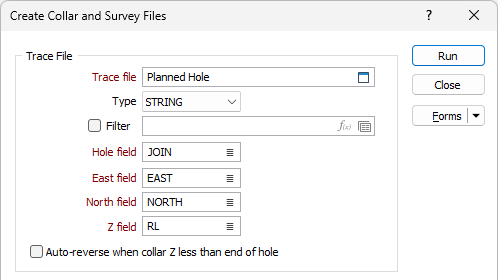

  1. In the Create Collar & Survey Files form, select your Planned Drillhole String file as the Trace file.
  2. Important! Be sure to set the Hole field to the field that contains your hole IDs.
  3. If holes exist from which to create a template, select the Drillhole Database Template option and choose a database.

    4. If no database is defined, Collar and Survey file structures are derived using the field defaults defined in Form Set Options.

  4. Enter the output filenames.

Hole Numbering

Planned drillholes must be given unique IDs before you can convert them to a Collar and Survey file. The application will warn you if it finds duplicate IDs during the conversion.

The (Hole Name, Hole Length) properties of the traces selected in the Planning layer traces can be edited in the Vizex Properties pane.

Input

Trace file

Double-click (or click on the Select icon) to select the name of the file that contains the strings that define drillhole traces.

Optionally define a filter to restrict the process to a subset of the records in the file.

Hole field

Double-click (or click on the List icon) to select the field that contains the values that identify each hole. This field will be used to process the strings in the file.

North, East, Z fields

Double-click (or click on the List icon) to select the names of the East, North, Z coordinate fields in the file.

Auto-reverse when collar Z less than end of hole

The first point for each hole is assumed to define a collar position. Select this option to auto-reverse the strings in the Input file when the “collar” Z value of a string is less than the Z value at the end of the string.

Drillhole Database Template

If holes exist from which to create a template, select the Drillhole Database Template option and choose a database. If no database is defined, Collar and Survey file structures are derived using the field defaults defined in Form Set Options.

Drillhole Database

Double-click (F3) to select from a list of databases in the current project. Alternatively, you can right-click and choose Select Database . You can also Edit the properties of an existing database or create a New database.

Select the Filter check box if you want to apply a filter to the database. Enter a filter number in the adjacent response. Double click (F3) to see a list of existing filters. Right click (F4) to open the dialog box where you can create a new filter.

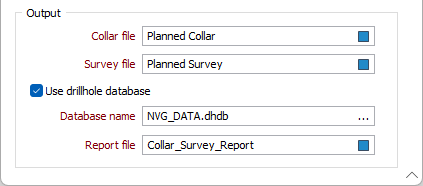

Output

Collar file

Enter, or double-click (or click on the Select icon) to select, the name of the Collar file to write the collar data to.

Survey file

Enter, or double-click (or click on the Select icon) to select, the name of the Survey file to write the survey data to.

Use drillhole database

Select this option to write the output to a specified drillhole database. If the specified database already exists, it will be refreshed using the Collar and the Survey files generated as a result of the process.

Database name

Select the drillhole database to write the output to from the Database name field.

Report file

Specify the name report file in the Report name field.

Run

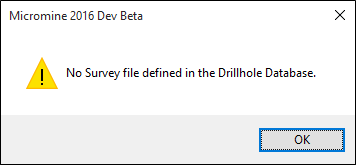

Finally, click Run to generate the files. If a database is defined and no Survey file is defined in the database, a warning is displayed. Only a Collar file will be created.

Forms

Click the Forms button to select and open a saved form set, or if a form set has been loaded, save the current form set.
