Output

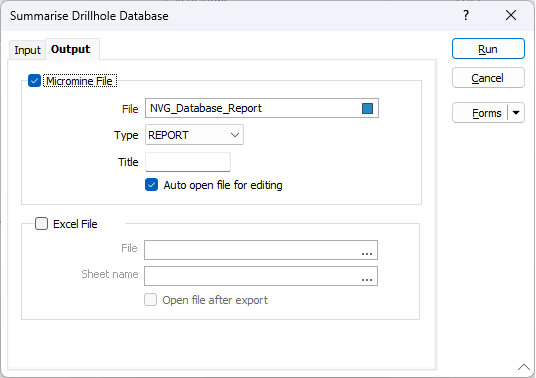

On the Output tab of the Summary Report form, choose whether to output to Micromine file format and/or Excel format.
Micromine File
File
Select a report type. Enter (or double-click to select) the name of the file to which the report data will be written, and optionally specify a title for the report.
Auto open file for editing

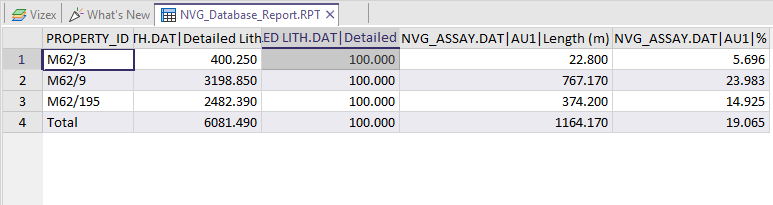

Select this check box to automatically open the newly created file(s) for editing in the File Editor.
Excel
File
To write the report to an Excel file, enter (or double-click to select) the name of the file. The following output file formats can be selected:
| Format | Extension | Description |
|---|---|---|
| Excel Workbook | .xlsx | The default Office Excel 2007 XML-based file format. |
| CSV | .csv | CSV format compatible with both Excel and Open Office (spreadsheet). |
Sheet name
If you are exporting to a new file, enter the name of the sheet in the file, i.e. Sheet1. If you are exporting to an existing file, double-click (or click on the ellipsis) to select a sheet.
Open file after export
Select this check box to automatically open the file in Excel after the export is complete.
