Refresh

On the Drillhole tab, in the Database group: Click Refresh to refresh one or more Drillhole Databases in the current project so that the traces can be regenerated to reflect changes to the source (Collar/Survey or Trench) files.

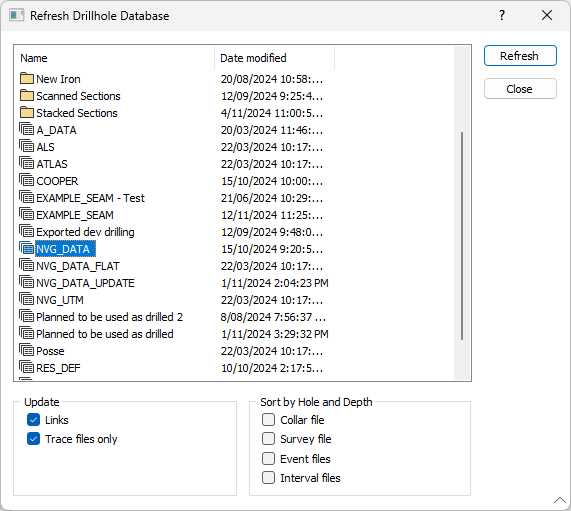

1. A list of databases in the current project is displayed in the Refresh Drillhole Database dialog. Select one or more databases in the project folder, or a sub-folder of the project folder.



2. By default, the Refresh process will also update the underlying database links. If you prefer not to download linked data, deselect the Links check box.
3. Select the Trace files only option to restrict the Refresh process to the Trace (Collar and Survey) files associated with the databases you have selected.
4. The option to Sort one or more of the associated database files by Hole and From/Depth is provided.
5. Click the Refresh button to refresh, and optionally update, the databases you have selected.

In a form, you can right-click in a Drillhole Database input box and select a Refresh Database option from the right-click menu.
