Ramps

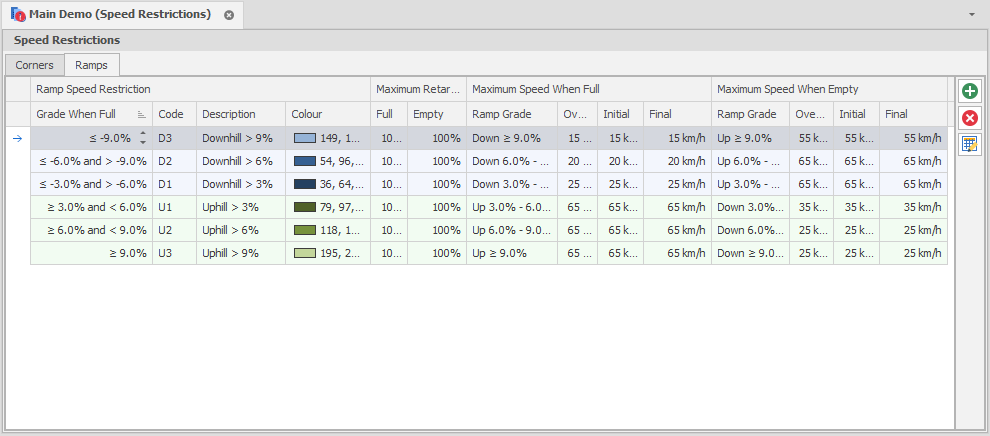

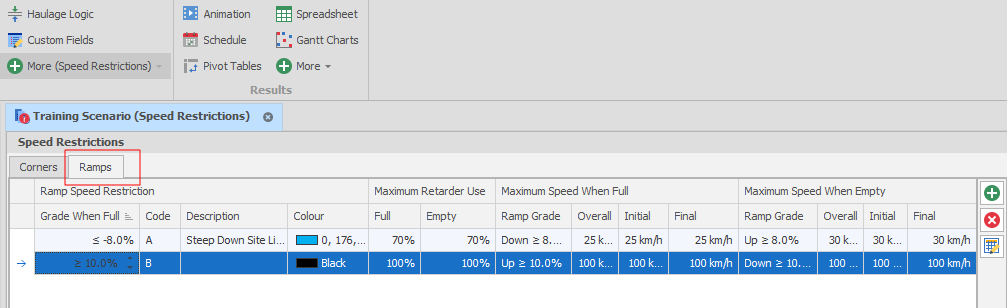

On the Ramps tab of the Speed Restriction window, view and (if necessary) edit the list of ramp speed restrictions.
Ramps refer to an additional site restriction on material travelling up and down certain angles of ramp. These will only apply if they are smaller than the simulated result from the Rimpull/Retard curves.
|
Add ramp speed restriction. |
|
Delete the currently selected ramp speed restriction |
|
Edit the currently selected ramp speed restriction. |
