Apply Projection Sequence

On the Shape tab, in the Move/Copy group: Click Apply Projection Sequence to perform a sequence of cascading projections on a set of input shapes. (Ctrl+Alt+L,P)

For example, you want to register an input polyline, take the registered line and project it, and take the projected line and offset it.

1. Select the Source of the data that will be used as input to the function:

   Selection	Design elements you have interactively selected in the Design Window.
   Visible	Design elements that are visible in the loaded layer. Elements that have been specifically hidden are excluded. This a quick way of selecting all visible elements in a layer without having to explicitly select them.
   Layer	One or more layers that you select. Names of layers currently loaded in the Design Window are shown in bold.

   For large datasets, for performance reasons you may prefer to select a layer rather than load that layer and select all of the elements in the layer.

   Selecting a non-applicable layer will have no effect. In most cases, an error icon will indicate that the chosen input layer is not valid. Hover over the icon to view a validation hint.

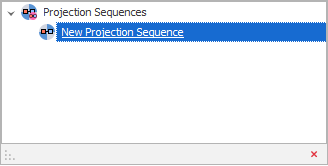

2. Use the drop-down to select a Projection Sequence:



3. Alternatively, click on the ellipsis to open the Projection Sequences dialog. Here you can create a new sequence or modify an existing sequence.

4. Click to Apply the Projection Sequence. The projection types you have selected will be run in the order you have specified.
