Wireframes

Grade Tonnage Attributes

The Grade Tonnage reports (Block Model, Interval, 3D Points) can now output Tonnage values. Additionally, the Grade Tonnage (Block Model) report can also output void tonnage values.

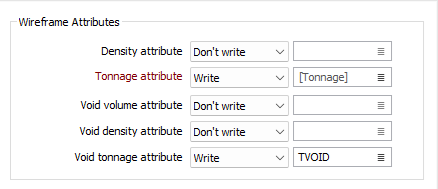

Report values for the Tonnage and Void Tonnage attributes can be written to the wireframe solid if Write or Overwrite is selected and a field value entered.

Minimum String Area

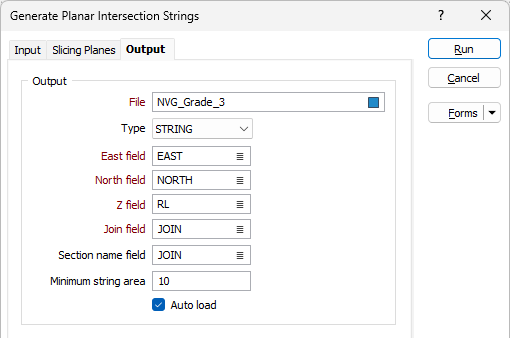

The Minimum string area option has been added to the Planar Intersection tool on the Wireframe tab, in the Generate Strings group to specify a minimum are value all strings must have to not be removed from the output.

For information on using the tool, see Planar Intersection.
