Output

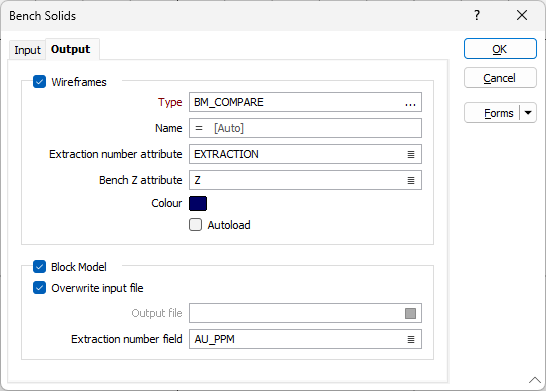

On the Output tab of the Bench Solids form, specify the wireframe and/or block model outputs of the process. A solid wireframe will be generated for each bench of the input block model, separated by the specified extraction number. You can choose to write the results back to the same or a different block model file.

Wireframes

Select a Type for the output wireframes. By default, the Name of each wireframe is auto-generated.

Extraction number attribute

Specify the name of the attribute that contains extraction numbers. Extraction numbers are unique number assigned to an identifiable “extraction” of which a block forms part.

Bench Z attribute

Specify the attribute to which the Z level of each bench will be written.

Colour

Specify a default colour for the generated wireframes.

Auto load

Select this option to load the generated output in Vizex. The default draw style for an auto-loaded wireframe is 3D Shaded.

Block Model

Select this check box to write the results of the process to a block model.

Overwrite input file

Select this option to write the assigned values back to the Input file.

Output file

If you do not want to overwrite the Input file, select a file type and enter (or click on the Select icon to select) the name of the Output file.

Extraction number field

Specify the name of the field that contains extraction numbers. Extraction numbers are unique number assigned to an identifiable “extraction” of which a block forms part.
