To Wireframe

Implicit modelling is done in two stages: a model is created and then a triangulation is created from the model. When you run an implicit modelling function and save the model, it can be used as an input to the functions on the Output Implicit Model menu on the Implicit tab, in the Tools group. These functions allow you to generate output wireframes, points, block models or volumes for the same model, without having to recompute the model each time.

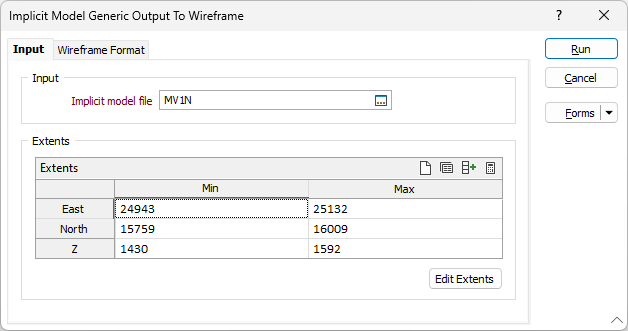

On the Implicit tab, in the Tools group: Select Output Implicit Model | To Wireframe to generate a wireframe from an input model.

Input File

Double-click or click on the Select icon to select the name of a file that was saved as an output file when running an implicit modelling function.

Extents

Define the area of interpolation:

East, North and Z fields

Specify the Minimum and Maximum extents of the surface in the East, North and Z directions.

Use the buttons on the local toolbar to Manage the rows in the list.

Edit Extents

If you click the Edit Extents button, the active layer is displayed with a bounding box that you can manually manipulate. For more information, see Edit Extents.

Click the Autofill Extents button to select the source of the extents you want to autofill.

To generate a wireframe, click on the Wireframe Format tab.

Wireframe Format
