To Point
Implicit modelling is done in two stages: a model is created and then a triangulation is created from the model. When you run an implicit modelling function and save the model, it can be used as an input to the functions on the Output Implicit Model menu on the Implicit tab, in the Tools group. These functions allow you to generate output wireframes, points, block models or volumes for the same model, without having to recompute the model each time.

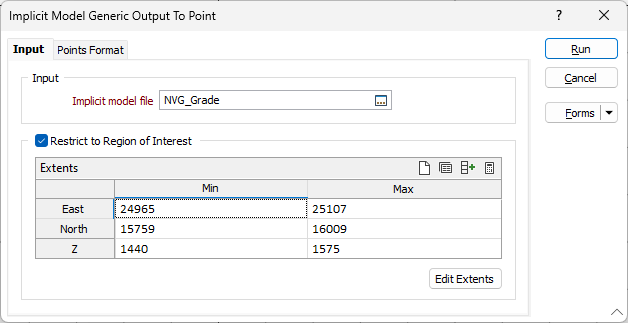

Input File
Double-click or click on the Select icon to select the name of a file that was saved as an output file when running an implicit modelling function.
Use the buttons on the local toolbar to Manage the rows in the list.
Click the Autofill Extents button to select the source of the extents you want to autofill.
Restrict to region of interest
Select this option to restrict the points to a region of interest.
East, North and Z fields
Specify the Minimum and Maximum extents of the surface in the East, North and Z directions.
Click on the Points Format tab to set parameters to generate points from the input model.
