Points Format

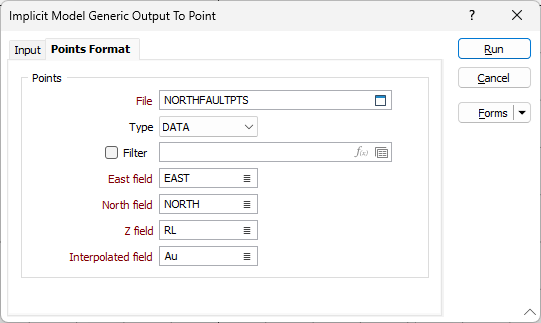

Use the Points Format tab of the Generic Output form to generate points from an input implicit model file.

Input

File

Double click (or click on the Select icon) to select an Input file. Typically, the Type of the Input file will be a DAT file containing Lidar point data.

Filter

Select the check box and set a filter in the field provided if you want to filter the information from the specified points file.

East, North and Z fields

Specify the names of the fields in which Easting, Northing, and (optionally) Z coordinates are stored in the Input file. These coordinates will be used to determine the extents of the generated grid.

Interpolated field

Specify the name of the field to which the results of the interpolation will be written.

Run

Click Run to generate points from the input implicit model file.
