Add Next Bench

On the Mining | Pit Design (Dynamic) tab, in the Setup groupClick Add Next Bench to use batter height, slope and berm width to add the next bench to the pit design.

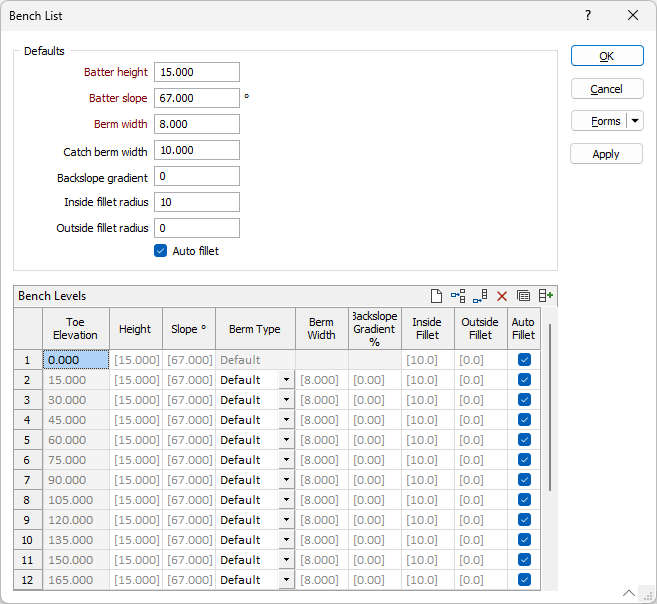

When you click the Add Next Bench button, the application will add the next bench to the design using the configured defaults and the Bench List for the design:

If you delete a bench from the Bench List, it will be removed from the design. If you click the Add Next Bench tool, the bench is automatically created on the design in the correct position and listed in the Bench List.

Bench List
