Bench List

the Mining | Pit Design (Dynamic) tab, in the Setup group: Click Bench List to display the Bench List defaults and list of Benches in the pit design.

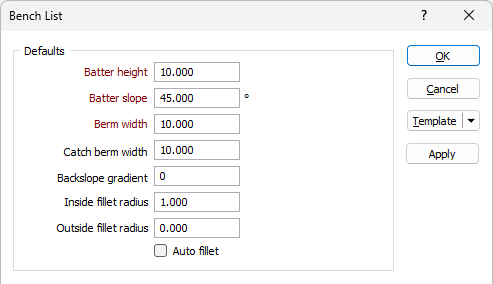

Defaults

Batter height

After the initial cut the Bench will present a face, and at this stage a bench can also be called a Batter.

Batter height is the vertical distance between Toe and Crest of the bench or the vertical distance between the upper surface of the bench and the lower (floor) surface of the bench. It is the Batters that form the final pit limits.

A "bench', on the other hand, is an operational open-pit concept. Pits are mined by benches, this is the unit of reference for extraction. A bench has an upper and lower surface. It can be described as a tabular body with a specific thickness called Bench Height. When benches achieve the final pit limit they form a pit 'batter'.

Batter slope

The Batter slope is the default angle, measured from the horizontal, between successive toe and crest strings. The angle is measured in degrees to 2 decimal places and the angle value should be greater than 0 and less than 90.

Berm width

The Berm width is the horizontal distance between a toe and a corresponding crest at the same level.

Berm Width is used to define the required width between bench faces. It is the measurement from the toe of the upper bench to the Crest of the lower Bench. Berms are necessary to provide slope stability and other safety reasons.

Catch Berm Width

Enter the width of the default width of the catch berms throughout the design.

Ramp Gradient Unit

The ramp gradient unit is the unit of measurement for the gradients of elements such as roads, ramps, switchbacks in your design. Use the drop down list to select the default Ramp Gradient unit:

Backslope Gradient

Sometimes a slope may need to be designed into the berms in order to collect water or stone fragments against the pit wall.

Enter a Backslope Gradient value. The value you enter should fall between 1% and 30% (typically 5 or 10) %.

If your configured gradient unit is not percent, the value you enter will be capped to the values converted into those units that are equal to 1%-30%.

The Backslope Gradient value can be modified in the Properties for the bench.

Inside fillet radius

Optionally enter an Inside fillet radius to condition the resultant pit strings. Fillets are applied to angles on the pit strings which range from acute to obtuse. The Inside fillet radius value applies filleting to angles on the inside of the string perimeters.

Outside fillet radius

Optionally enter an Outside fillet radius to condition the resultant pit strings. Fillets are applied to angles on the pit strings which range from acute to obtuse. The Outside fillet radius value applies filleting to angles on the outside of the string perimeters.

Minimum Area

Enter the minimum base area that a bench must have before it is created. Setting a minimum area value can prevent some small benches being generated in areas which are virtually flat.

Interramp angle

The Interramp angle is the slope angle produced by a number of benches. The value in the field is automatically calculated from the Batter Slope, Batter Height and Berm Width values, which are assumed to be constant.

The overall slope angle, on the other hand, is the angle of a line from the toe at the bottom of the pit, to the crest of the pit surface. Since this slope takes into account the haul roads and all working levels, it will not be constant at all parts of the pit.

It therefore follows that the Interramp angle will be steeper than the overall slope angle, and this must be taken into consideration during the pit design.

Auto fillet

The Auto fillet option which can be set from the Bench Properties, applies whatever fillet radius is needed to determine the arc of a curve. Acute angles are automatically smoothed, so in some cases you may prefer to leave this option Off.

For the Bench List, selecting the Auto fillet option will select Auto fillet in the Bench List grid for every bench. You can deselect the option in the Bench List grid for any bench to which auto fillet should not apply.

Benches

The Bench Levels grid displays a list of the benches in the current pit design.

If the bench list is left empty during setup, the initial bench will inherit the elevation of the first base defined in the design.

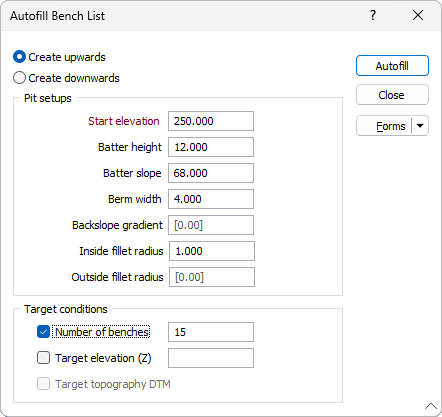

To populate the bench list, you can use the buttons in the toolbar to manually enter rows, or select the Autofill the Grid button to open the Autofill Bench List form:

Create Upwards / Downwards

Select whether to create the benches for the pit upwards or downwards.

Pit Setups

Start elevation

Enter the elevation of the bottom string (toe) for the first bench in the pit projection. The remaining benches, if any, will be auto-assigned the elevation based on the start.

Batter height

After the initial cut the Bench will present a face, and at this stage a bench can also be called a Batter.

Batter slope

Berm width

The Berm width is the horizontal distance between a toe and a corresponding crest at the same level.

Backslope Gradient

Sometimes a slope may need to be designed into the berms in order to collect water or stone fragments against the pit wall.

Enter a Backslope Gradient value. The value you enter should fall between 1% and 30% (typically 5 or 10) %.

If your configured gradient unit is not percent, the value you enter will be capped to the values converted into those units that are equal to 1%-30%.

The Backslope Gradient value can be modified in the Properties for the bench.

Inside fillet radius

Outside fillet radius

Minimum Area

Enter the minimum base area that a bench must have before it is created. Setting a minimum area value can prevent some small benches being generated in areas which are virtually flat.

Interramp angle

It therefore follows that the Interramp angle will be steeper than the overall slope angle, and this must be taken into consideration during the pit design.

Target Conditions

The Target Conditions options determine the desired values of the output; including number of benches, elevation and topography.

Number of benches

Select this option to project the pit up or down by the required number of benches.

Target elevation (Z)

Select this option to project the pit up or down until it reaches a target elevation.

Target Topography DTM

Select this option to project the pit up or down until it fully penetrates the surface of the topography DTM configured in Setup.

When the details for the bench list have been configured in the Auto Build Pit form, click the Autofill button to populate the Bench List grid.

Bench Levels Grid

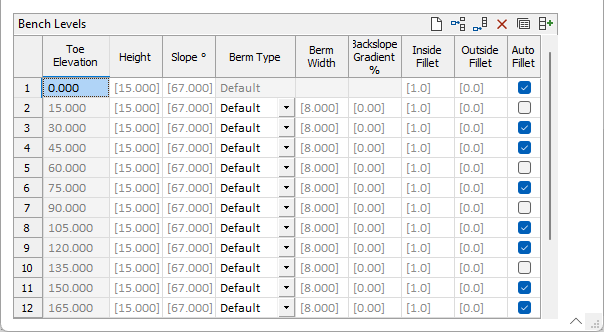

The Bench Levels grid contains the following values for each bench in the list :

Toe Elevation	The elevation of the inside peak formed by the intersection of the bench face and bench floor.
Height	The height in grid units for the bench. The Batter Height value can be viewed and modified in the Properties pane.
Slope °	The degree value of the slope for the bench. The default is 45°. The Batter Slope value can be viewed and modified in the Properties pane.
Berm Type	The berm type for the bench - Default, Catch, Custom or None. The Berm type can be viewed and edited in the Properties for the bench. The Custom berm type allows you to change the Width for the berm from the default value to a custom solid value. Changing the Width of a berm will automatically set the Berm Type to Custom. If no value is set for Width, then the Berm Type will be Default and the default width will apply. Setting the Berm Type to Default or Catch will change the width to the default value.
Berm Width	The width in grid units of the selected berm type for the bench. The default value is 10. Berm Width is used to define the required width between bench faces. It is the measurement from the toe of the upper bench to the Crest of the lower Bench. Berms are necessary to provide slope stability and other safety reasons. The Berm Width value can be viewed and modified from the Properties pane.
Backslope Gradient %	The gradient percentage of the backslope for the bench, if any. The Backslope Gradient value can be viewed and modified from the Properties pane.
Inside Fillet	The inside fillet radius of the bench, if any. Fillets are applied to angles on the pit strings which range from acute to obtuse. The Inside fillet radius value applies filleting to angles on the inside of the string perimeters. The Inside Fillet value can be viewed and modified from the Properties pane.
Outside Fillet	The outside fillet radius of the bench, if any. Fillets are applied to angles on the pit strings which range from acute to obtuse. The Outside fillet radius value applies filleting to angles on the outside of the string perimeters. The Outside Fillet value can be viewed and modified from the Properties panel.
Auto Fillet	The Auto fillet option which can be set from the Bench Properties, applies whatever fillet radius is needed to determine the arc of a curve. Acute angles are automatically smoothed, so in some cases you may prefer to leave this option Off.

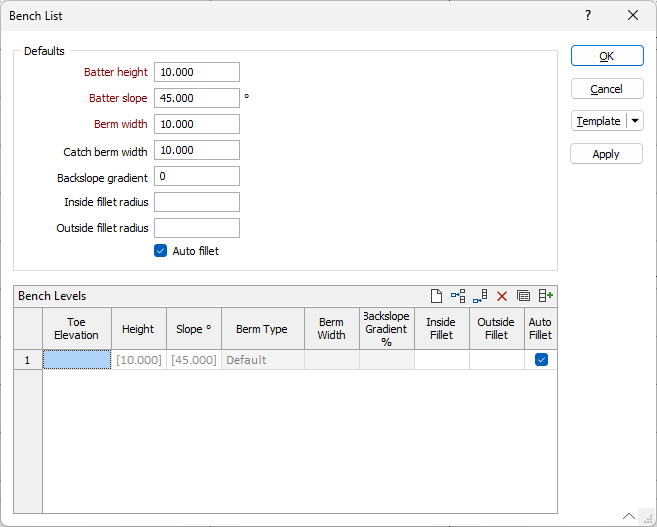

The Bench List dialog will also open when you create a new Pit Design; loaded with the required parameters from your design settings, but without any benches created:

Benches can be created manually here, or using autofill as with the Bench List tool described above. If you use autofill, you will need to enter a Start elevation.

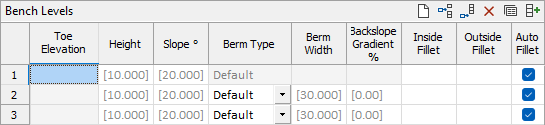

If you manually create the bench list, you will need to enter an elevation value in the first row. Benches with an undefined elevation in the first row when setting up a new design cannot be created. Any valid value entered in the first row will set each bench you add to the correct elevation according to the Height value. However, if no value is set for the first row, elevation values for subsequent benches will be blank, and therefore no benches will be displayed in the bench list.

If you create any base polygon at any level, it will appear with this elevation level in the Bench List.
