File to Grid

On the Grid / DTM tab, in the Grid Convert group: Click File to Grid to convert a Micromine Data file to a Micromine Grid Surface (*.GRD) file.

Input

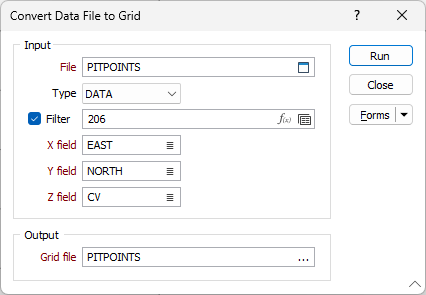

In the Micromine File to Grid form, select a Micromine (DATA, SURVEY, STRING, REPORT) file type and then double-click to select the name of the input file.

You can optionally select a Filter for the data or click the icon to open the Expression Editor and use an expression.

Double-click in the field boxes to specify the fields in the file that contain X Y Z coordinates.

Output

Grid file

Enter or double-click to select the name of the output Micromine Grid Surface (*.GRD) file.

Forms

Click the Forms button to select and open a saved form set, or if a form set has been loaded, save the current form set.

Run

Finally, click the Run button to begin the conversion process.
