Clip

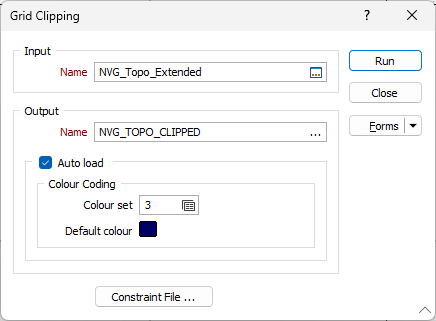

On the Grid / DTM tab, in the Grid Tools group: Click Clip to clip a Grid Surface (defined in an input Micromine Grid Surface file) based on the strings in a String file, or the outlines in an Outline file, and write the result to a new Micromine Grid Surface file.

Grid file

Double-click to select the name of a Grid file you created in the Contours function.

Output file

Enter or double-click to select the name of the output Grid file.

Auto Load

Select the Auto Load check box if you want the grid to be loaded automatically in Vizex.

Colour Coding

If you chose to auto load the grid, use the Colour set and Default colour options to configure the display colour for the grid.

Constraint File

Click the Constraint File button to constrain the clipping process based on the boundary contained in a String or Outline file.

Run

Finally, click Run to run the function.
