Assign

On the Grid / DTM tab, in the Grid Tools group: Click Assign to determine whether the points in a data file are above, below, or outside an existing grid surface.

Each point in the data file is projected onto the grid. The Z value of the data point is compared to the Z value of the grid. The value written to the Code field for that point depends on whether the point is above, below or outside the grid.

Grid file

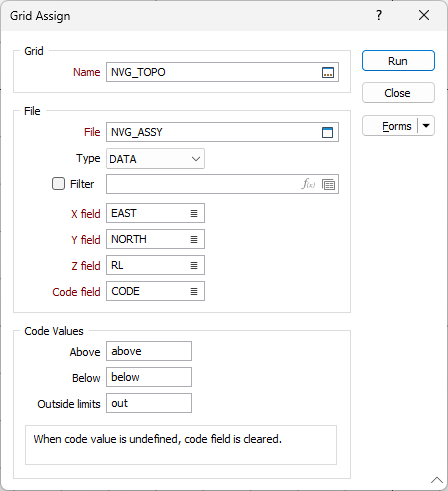

On the Grid Assign form, double-click to select the name of the Grid file you created in the Contours function.

MM file

Enter the name of the input file and apply a filter if necessary.

East and North and Z fields

Specify the names of the fields in which Easting, Northing, and Z coordinates will be stored in the output file.

Code field

Double-click to select the Code field name. Values indicating whether a point is above, below or outside the Grid will be written to this field.

Code values

Enter the values you want written to the code field for each of the possible assignments. A value will be written to the code field when the point is Above or Below the triangulated surface, or Outside the area covered by the triangulated surface.

Run

Finally, click the Run button to run the function.
