Trench File

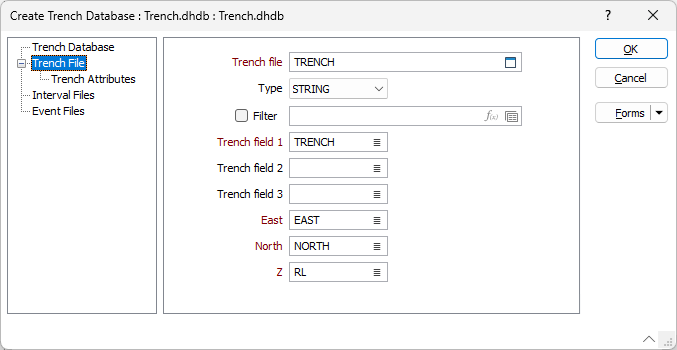

Use the Trench File tab on the Trench Database form to select and configure the trench deflection point file for your database.

Trench file

Specify the name of a file that contains the coordinates of your trench deflection points, enter field settings and optionally apply a filter in the Define Trenches pane.

Filter

Select the Filter check box and use the Select option to apply a filter to limit what data from the Trench file is displayed.

Trench fields (1 - 3)

Double-click to select the name of the field (or fields) that uniquely identify each trench.

East and North and Z fields

Specify the names of the fields in which Easting, Northing, and Z coordinates are stored in the Trench file.

Trench Attributes

Event and Interval Files

Forms

Click the Forms button to select and open a saved form set, or if a form set has been loaded, save the current form set.

OK

Finally, click OK to save the properties of the database you are creating or editing.
