Labels

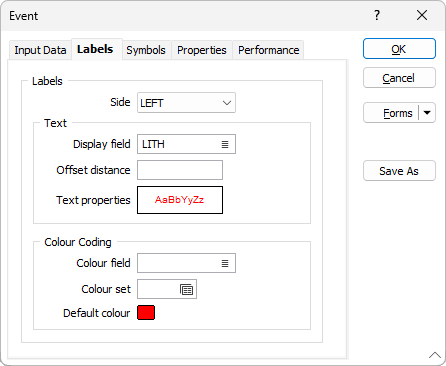

Use the Labels tab to define the position and appearance of the event labels in the Drillhole display.

Labels

Side

Events can be displayed on the LEFT or RIGHT of the drillhole trace. Use Side to determine their location.

Text

Display field

Double-click (or click on the Select icon) to select the name of the field containing the event values you want to display. The function uses the Depth field to position the event display along the drillhole trace.

Offset distance

Define the distance, in grid units, that the first character of each label will be offset from the trace. The default is 1. Both positive and negative values are acceptable.

Text properties

Double-click on the Text Properties Preview box to select a font and set text properties.

Colour Coding

Colour field

Specify the name of a field which contains the values that will be used to colour-code the display.

You can choose to select colour values directly from the Colour field without selecting a Colour set. In this case, the values in the Colour field must be valid RGB, Hex, or Integer colour definitions.

Format	Example
R,G,B	89,169,215
HTML Hex	#59A9D7
Hex	0x59a9d7
int	5876183

Colour set

To map values in the Colour field to the colour values in a Colour set, double click (F3) to select the set that will be used to control the display colour. Right-click (F4) to create or edit a Colour set.

Default colour

Double-click (F3) to select the colour that will be used when a Colour field or a Colour set is not defined - or when a value in the Colour field is either not valid or is not mapped in the Colour set.
