Network Definition

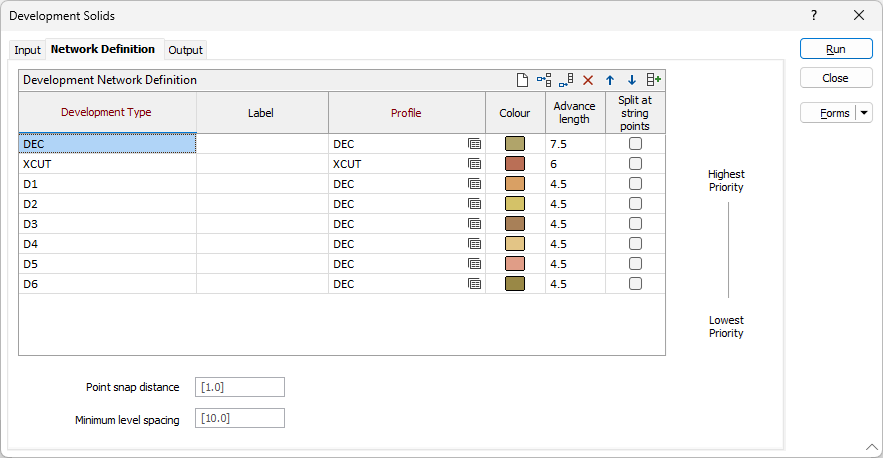

On the Network Definition tab of the Tunnel Network form, define the extrusion for each development type.
Development Network Definition
Development Type
Values obtained from the Development type field (specified on the Input tab of the Tunnel Network form) are listed here. The Highest to Lowest Priority of each development type is based upon their order in the grid list.
To change the priority or remove one or more development types from the list: Use the buttons on the local toolbar to Manage the rows in the list.
Label
Optionally, assign a Label value for each development type.
Profile
Click the Forms button to load a previously saved form set that contains the parameters of the profile shape for each development type.
To edit a form set, right-click and select Edit or press F4. To create a filter, right-click and select New. See: Define Profile Shape
Colour
Optionally, assign a display colour for each development type.
Advance length
For the current development type, optionally specify the maximum length of a tunnel block. A blank value is valid input (don't subdivide the tunnel by advance length). If a value is entered, the value must be > 0.1.
Split at string points
Select this check box to generate multiple tunnel wireframes per string segment.
Point snap distance
To ensure that duplicate points in the network are correctly detected, specify a point snap distance or accept the default value [1.0].
Minimum level spacing
To identify multiple mining levels, specify a minimum Z spacing value or accept the default value [10.0].
