Group By

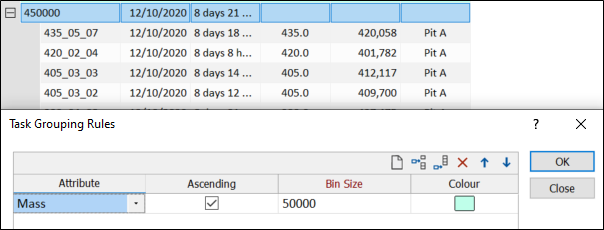

To create a rule, use the Attribute drop down menu to define the Task attributes and the Scheduler core attributes you want to include in the grouping rule, then select a Colour for the grouping bar that will be created in the Tasks List.
For numeric attributes, the Ascending check box can be used to control whether an attribute is sorted in ascending or descending order. When a Bin Size is specified, the tool will use the bin size and the minimum and maximum values of the nominated attribute to determine the number of groups.
The drop-down on the Scheduling | View tab, in the Grouping group, provides a list of pre-defined group rules, as well any rules you have saved as form sets.
Task Groups
Template
The Template button is only available for Template Forms. Template Forms inherit saved or previously used values.
Click the Template button to select and open a saved form set template.
Load Template
Click the Load Template button to select and open a saved template to populate the fields of the form.
Save Template
Click the Save Template button to save the details of the current form as a template that can be loaded at a later time.
Manage
Click the Manage button to open the Template Forms manager which can be used to open, save, delete, import and export the template forms for your project.
Undo and Redo
Click Undo (CTRL + Z) to undo recent changes in the form. After an Undo, click Redo (CTRL + Y) to restore the last change that was undone.
Collapse
Collapse (roll-up) the form to preview a chart, or preview the results of an operation in Vizex, or obtain input values from Vizex, the Property Window, the File Editor, or the Plot Editor.
