Consumables

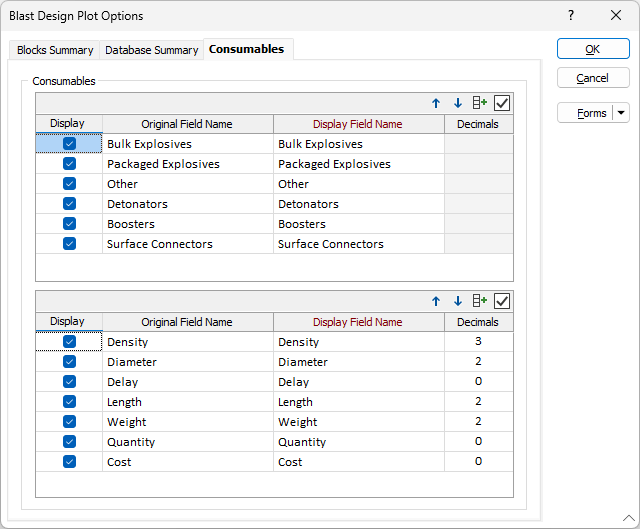

The consumables that have been set up in the Consumables Library are referenced by the charge templates assigned to the holes. You can use the Consumables tab of the Plot Options form to provide a summary of these consumables and their associated measures.

Display

Select these check boxes to enable or disable the display of the summary fields listed. To display all fields, select the Select All check box.

Original Field Name

This column displays the name of the field in the blast desighn database.

Display Field Name

This column displays the name of the field as it will be displayed in the blast design plot. To edit the display name for a field, double-click on the cell to make it editable.

Decimals

This column displays the number of decimal places to which the value for the field will be displayed. Where applicable, you can click inside the Decimals column and change the number of decimals to be used.

Field Names

Bulk Explosives	Reports the name of the bulk explosives defined in the Consumables Library and deployed within your projects.
Packaged Explosives	Reports the name of the packaged explosives defined in the Consumables Library and deployed within your projects.
Other	Reports the name of the Other explosives defined in the Consumables Library and deployed within your projects.
Detonators	Reports the name of the detonator(s) defined in the Consumables Library and deployed within your projects.
Boosters	Reports the name of the booster(s) defined in the Consumables Library and deployed within your projects.
Surface Connectors	Reports the name of the connectors defined in the Consumables Library and deployed within your projects.

Note that packaged explosive quantity and cost calculations are accounted for and reported as the total package length used during blasting and are not reported on a per-hole basis.

Measures

Density	Reports the density measure for each explosive type deployed within your projects to the specified number of decimal places.
Diameter	Reports the diameter measure for the explosives deployed within your projects to the specified number of decimal places.
Delay	Reports the delay length for the explosives deployed within your projects to the specified number of decimal places.
Length	Reports the physical length of the explosives deployed within your projects to the specified number of decimal places.
Weight	Reports the weight measure of explosives deployed within your projects to the specified number of decimal places.
Cost	Reports the cost of the explosives and consumable items deployed within your projects to the specified number of decimal places.
