Plot Options

On the Mining | Blast Design tab, in the Report group: Click Plot Options to choose which details to include in a plot. Drilling, sub-drilling, and explosive summary totals, may be included or excluded from the plot.

Blocks Summary

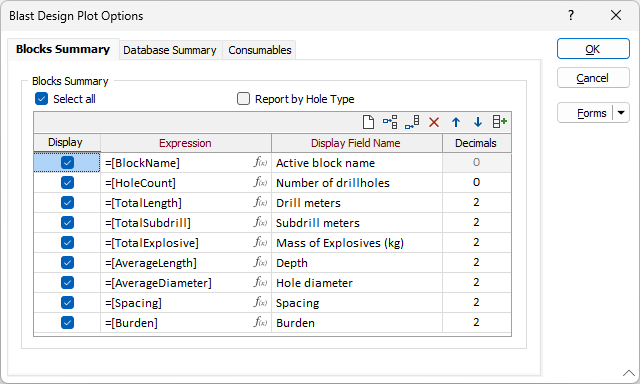

Use the Blocks Summary tab of the Plot Options form to choose how the blocks in the design will be reported.

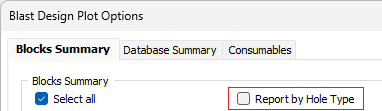

Report by Hole Type

Select this check box option to group the summary report by hole type.

If the active pattern has holes with different hole type values and the Report by Hole Type option is not selected, average values across all the holes are reported.

Holes without a hole type designation are counted as the same Main hole type.

Display

Select these check boxes to enable or disable the display of the summary fields listed. To display all fields, select the Select All check box.

Expression

This column displays the fields from the blocks summary database to be displayed. To change the expression for the field, click the Expression icon at the right of the cell.

Display Field Name

This column displays the name of the field as it will be displayed in the blast design plot. To edit the display name for a field, double-click on the cell to make it editable.

Decimals

This column displays the number of decimal places to which the value for the field will be displayed. Where applicable, you can click inside the Decimals column and change the number of decimals to be used.

Use the buttons on the local toolbar to Manage the rows in the list.

Database Summary

Consumables

OK

Finally, click OK to save your Plot Options. A Plot file can be generated with the configured options using Generate Plot.
