Micromine Wireframes

In the Project Explorer, right-click on a Table and select Import | Solids | From Micromine Wireframes. You will be prompted to navigate to the location of the Micromine triangulation database (*.trdb) files you want to select for import.

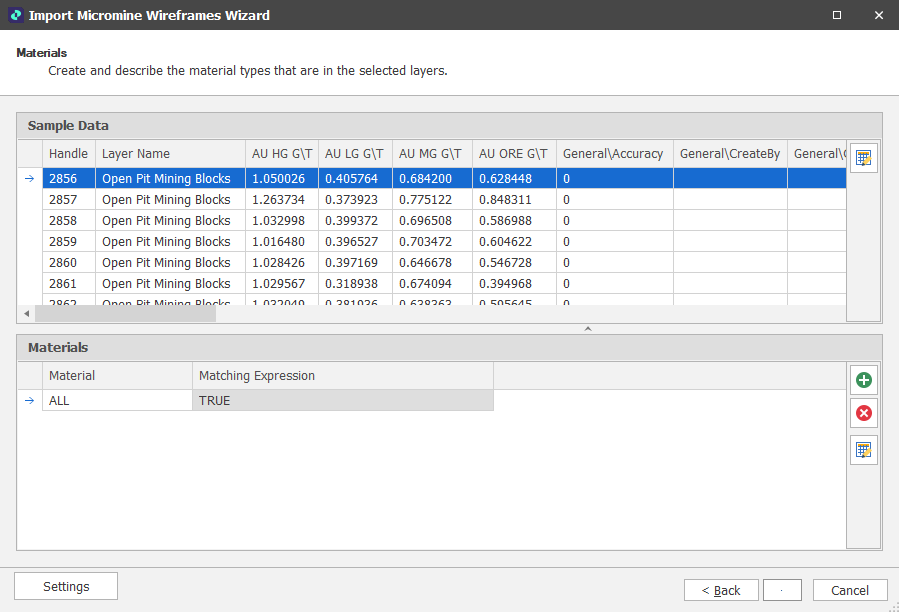

Sample Data

In the Import Wizard, the attributes for up to the first 10 files you have selected are shown in the Attribute Preview pane for review. It will also notify you if there have been any issues with importing the file. An option to view the attributes for all of the imported triangulations is available.

Materials

If you have more than one Material Type, use the Materials pane to use expressions to determine how the solids you are importing will be classified by material. By default, ALL is selected as the material type, meaning you do not want to differentiate by Material Type.

Click the Add icon to enter an appropriate expression that will classify solids by a specified Material attribute.

Add a new item to the list.
Delete the item(s) currently selected in the list.
Use the Bulk Editor to make bulk modifications to the items in the list.

Note that processing the properties and attributes of a large file may take some time. You will prompted to Continue (or Cancel).

Click Next to continue.

Table Level Expressions

Level

Use the Level Mappings table to map the level structure of the attributes in the imported solids to the levels in the table (i.e. Pit, Stage, Strip, Block, Seam, Bench).

Matching Field/Expression

When you click in a Matching Field/Expression cell, there are two ways in which to match the attributes you want to import to the Levels in the table.

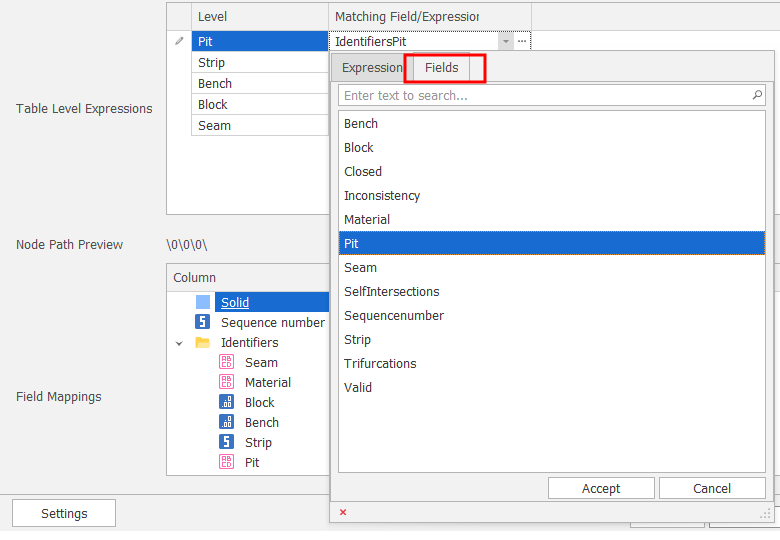

  1. Click the drop-down and select the Fields tab to select a field to match to the level:


Select a Level field

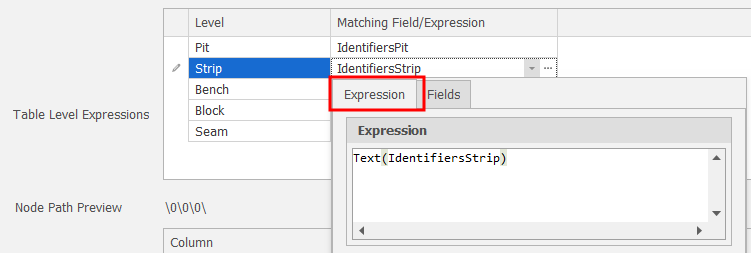

  1. Click the drop-down and select the Expression tab to build a field expression.

    For number attributes, replace integers with text, Text(Identifers\Strip), Text(Identifers\Block), etc.

    (You can also click the ellipsis button to build a field expression in a separate Expression Editor window.)


Match Level by Expression

Click the Map Levels icon to allow the application to auto map levels to an attribute in the Source file based on Name.

Click the Bulk Editor icon to make bulk modifications to the Level expressions or fields in the list.

Node Path Preview

Based on the mapped levels, a preview of the node path is shown.

Clear Existing Layer Elements

Select this check box to clear the layers selected for import if those layers already exist.

Field Mapping

Use the Field Mappings table to map OTHER fields in the data table to the attributes you want to import.

  1. Click the drop-down to select a field to match to the import attribute:


    Select a Field

  1. Click the ellipsis button to setup fields that can be matched to import attributes.

Click the Map Attributes icon to allow the application to auto map fields to the attributes in the source file, based on Name.

Click the Bulk Editor icon to make bulk modifications to the attribute mappings.

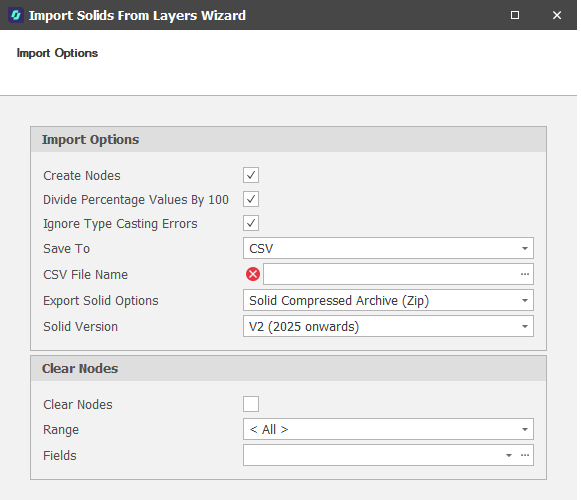

Import Options

The following Import Options are available for selection:

Create Nodes

Select this check box to create nodes as new positions are encountered. Nodes are the progressive positions within a Table Structure, for example, Pit, Stage, Strip, Block, Seam, Bench values:

Alpha/2/3/5/D/100

Divide Percentage Values by 100

The application expects percentages to be in 1 based. If your data stores percentages in 100 based, select this check box to convert them to 1 based. For example, 50% in 100 based is 50, whereas 50% in 1 based is 0.5.

Ignore Type Casting Errors

Select this check box to import data irrespective of mismatches in the data type between imported attributes and layer attributes. Any necessary type conversions will be applied to the imported attributes.

Save To

By default the layer solids you selected will be saved to the target table. You can also select an option to save the solids to a specified CSV file instead.

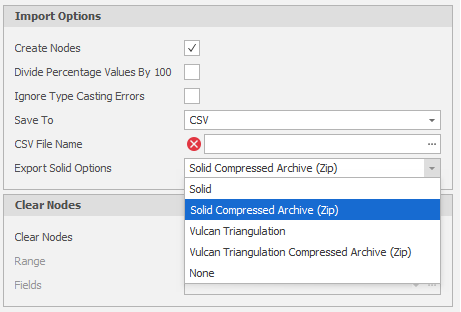

Export Solid Options

If you choose to save the imported triangulations to a CSV file, the option to export the generated solids alongside the CSV file is also provided. Choose an export format in which to save the solids (or select None).

Clear Nodes

Each Node within a Picked Range is an inclusive type filter, meaning the Nodes you clear are excluded from the Picked Range you selected as the Import Range. Select the Range and the Fields within which you want to clear nodes.

Click Next to proceed with the import. The Import process will will create whatever positions are needed.

Tip: When you are importing data into a table and the Position required does not exist, the application (if you select the option to do so) will append the Position to the end of the list regardless of "logical" ordering. If the application is creating Positions for you, you should ensure that you re-order once completed.

For more information, see Levels

Settings

Select Settings | Export to export mappings and other settings to an XML file. This file can subsequently be used to import the same data into other projects/models.

Restart

Click Restart (at the lower left of the Wizard window) to proceed with another import and return to the Import Options page. From there you can adjust your import settings and re-import if needed.
