Properties

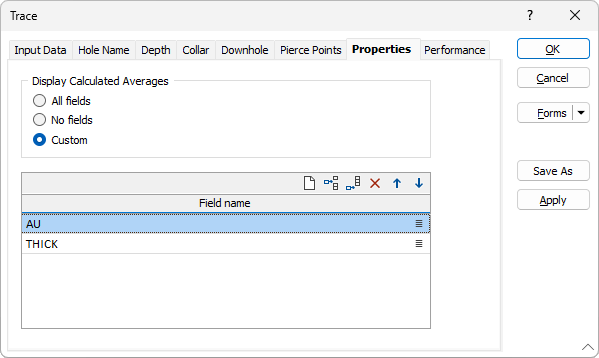

If you want to display one or more calculated averages for the drillhole trace, select one of the options on the Properties tab.

Select whether to display calculated averages for All fields, No fields, or a Custom collection of fields.

If you selected Custom, you can configure the fields for which you want calculated averages displayed using the grid. You can use the tools for the grid to Manage the rows in the list and add each field required.

The fields selected in the Properties tab will be displayed in the Average grid of the Properties panel for the drillholes.

Note: The Display Calculated Averages options are disabled where an Interval file has not been specified.
