Activity Sequences
An Activity Sequences step can be used to set logical dependencies between activities, i.e., you can’t mine a blast until it has been drilled and blasted. These can be constrained to a particular record set, defined by the user.

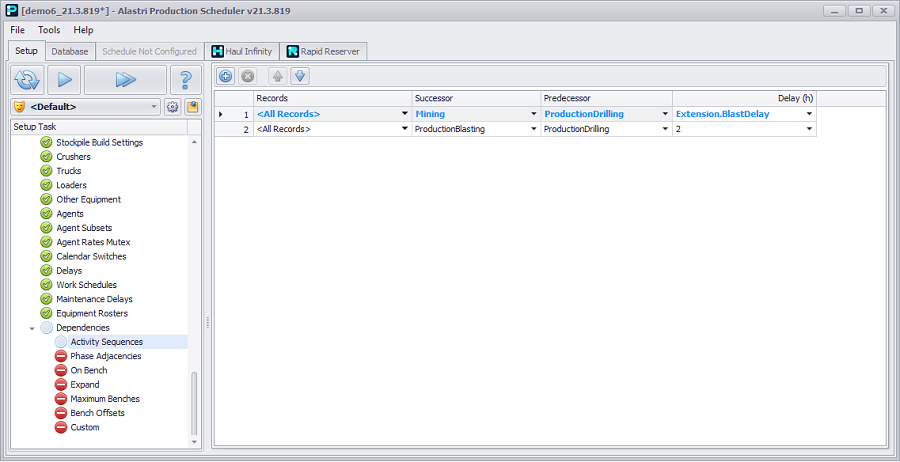

Activity Sequences step overview
Subsets created in the Setup tab > Record Subsets step are available to be used here.
|
Column |
Description |
|---|---|
|
Records |
Select record subsets to apply the following dependency to |
|
Successor |
The activity to follow the predecessor activity |
|
Predecessor |
The activity to be completed before the successor activity |
|
Delay (h) |
A delay, specified in hours, which will be applied to the successor activity once the predecessor activity has been completed |
To add an Activity Sequence:
-
Click theblue plus button.
-
Configure the sequence as per table above.
Activity Sequences can be added through scripts. These entries in the table will appear in bold blue and can’t be edited.
