Other Equipment

In the Other Equipment step, assign equipment such as drills and auxiliary equipment to the relevant activity.

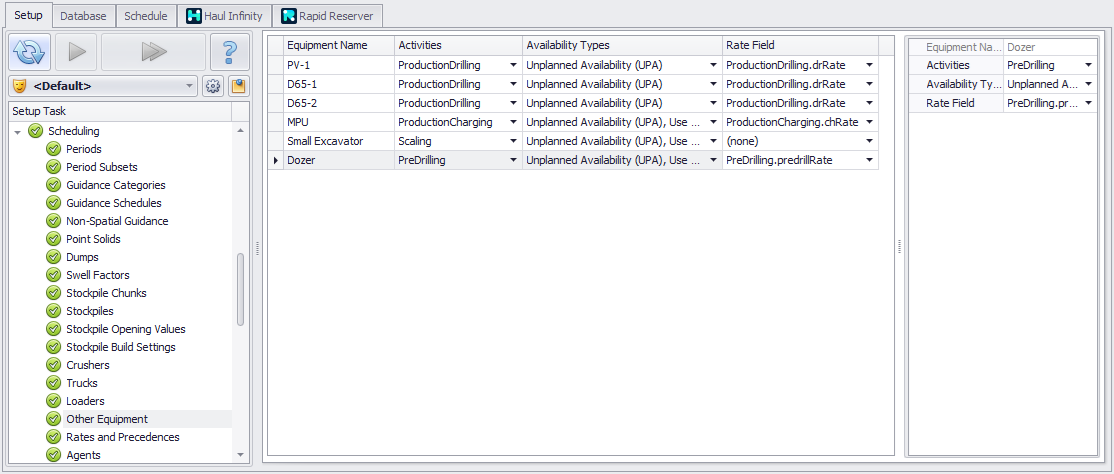

Other Equipment step overview

To add other equipment:

• Go to the Setup tab > Site Lists step> Other Equipment field:

  • Click the blue plus icon to add a new piece of equipment.

• Go to the Setup tab > Other Equipment step:

  • Select the applicable Activity and Availability Type for the piece of equipment.

  • Optional – Select a database field to reference as Agent rate. If nothing is selected or the value in the field is 0, then the agent will use the rate entered in the Calendar or a rate via Extensions (if setup in model). If agent is allowed to perform multiple activities, then one rate field can be selected for each activity. Note: Rate field must be in the Field Collection associated with the Activity.

  Agent rates can be set multiple ways:

  • Calendar Input (Default)

  • Sequence Bar Max Rate Property

  • Database Field

  • Extensions

  Note: If multiple rate inputs have been used in the schedule, Alastri will choose the lower of all rates.

You can use multi-selection function (<CTRL> or <SHIFT> keys) to quickly apply the same Activity across multiple pieces of equipment.

For more details on Availability types and their affects see: Agent TUM Calculations
