Site Lists

In the Site Lists step, add lists of items to the project.

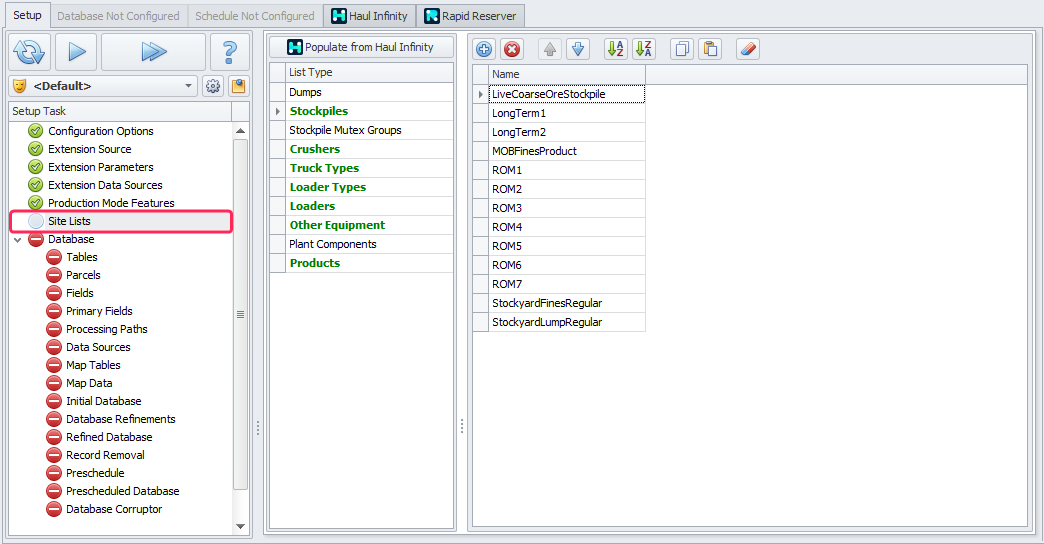

Populate lists of site items for you project

Site Lists items

List Type	Item Function
Dumps	Optionally add point dumps to the project, such as the current tip head location.If dump solids are being imported, this list can be left empty.
Stockpiles	List all stockpile locations. Stockpile names must match the names which exist within Haul Infinity. Example: ROM stockpiles, long term stockpiles, crushed product stockpiles, and stockyard stocks.
Stockpile Mutex Groups	List Stockpile Mutex group names, to be applied in the Stockpiles Setup task.
Crushers	List all crusher feed locations. Crusher names must match the names which exist within Haul Infinity.
Trucks Types	List all trucks types on-site. Truck names must match the names which exist within Haul Infinity.
Loader Types	List all loader types used on-site — i.e., WA1200. Loader names must match the names which exist within Haul Infinity.
Loaders	List all of the individual loaders used on-site by asset ID, i.e., EX10.
Other Equipment	List any other equipment (such as drills, bomb trucks, or dozers).
Plant Components	List any “bottlenecked” plant components such as crushers, conveyor belts or screens.
Products	List saleable products, such as Ounces (gold) or Lump and Fines (iron ore).

All items used throughout the project must be listed here.

Populate from Haul Infinity

You can populate several Site List items directly from Haul Infinity, reducing manual entry when the Haulage Network was set up before the scheduling model.

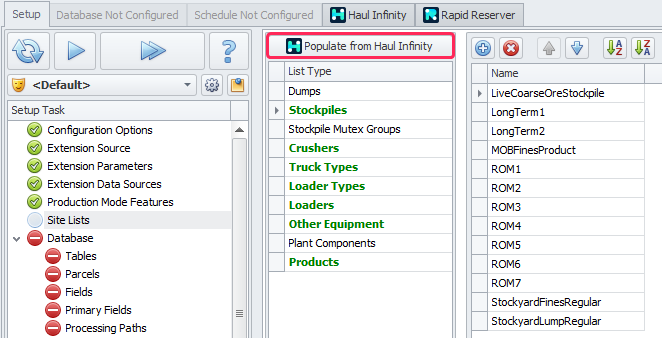

To do this, use the Populate from Haul Infinity button located directly above the Site List items.

Populate Site Lists from Haul Infinity option

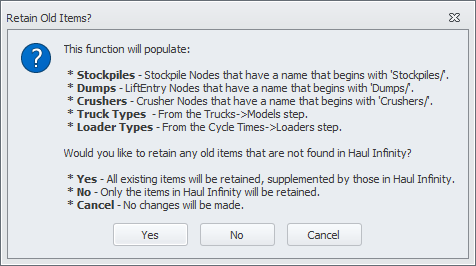

Once selected, a message box, shown in the image below, will be displayed outlining three different import options.

Select one of options for dealing with old items

This option will populate corresponding Nodes of Stockpiles/Dumps/Crushers and Types of Trucks and Loaders.

Option	Actions
Yes	All existing items will be retained, supplemented by those in Haul Infinity.
No	Only the items in Haul Infinity will be retained.
Cancel	No changes will be made.
