Engineering Plot Settings

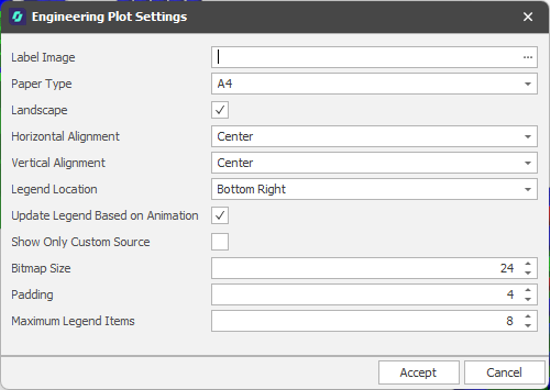

In the Engineering Plots selection pane, select Settings from the Edit Settings drop-down menu to set plot settings that apply to all plot layouts.

Label Image

Click on the ellipsis to navigate to the location of a label image.

Landscape

The default plot paper orientation is Landscape. Deselect the check box if you prefer a Portrait paper orientation.

Horizontal/Vertical Alignment

Select a (Near, Centre, Far) alignment option.

Legend

Location

Set the Vertical (Top/Middle/Bottom) and Horizontal (Left, Centre, Right) location of the legend.

Update Legend Based on Animation

By default, the legend is updated automatically whenever changes are made to the animation layout. Deselect the check box if you prefer a static legend.

Show Only Custom Source

By default Source and Destination Colour Sets are applied in the Animation Layout. Select this check box to only apply the Source Colour Set to the legend.

Bitmap size/ Padding

Use the spin controls to adjust the size of the bin boxes and the padding between them.

Maximum Legend Items

By default there are 8 legend bins. Use the spin controls to adjust the number of bins up or down.

Accept

Click Accept to save any changes.

Cancel

Click Cancel to close the dialog without saving.
