Radius

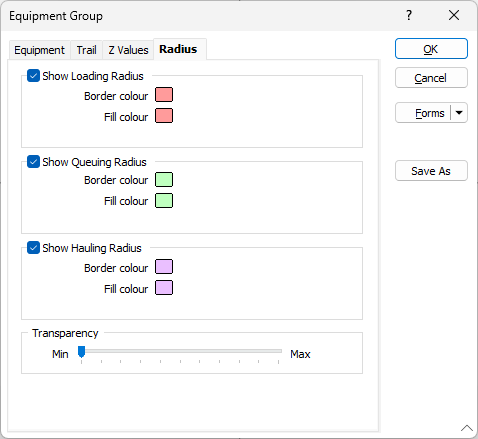

Use the Radius tab to display a radius of influence for the hauling cycle states—Loading, Queuing (at Dump), and Hauling.

Select the Border and Fill colours for the cycle status radius options you have selected:

Queuing	Truck is waiting for the loader.
Loading	Loader is loading material into the truck.
Hauling	Truck is hauling material to the dump.

Transparency

Use the transparency slider to specify the transparency of the displayed elements.
