Output

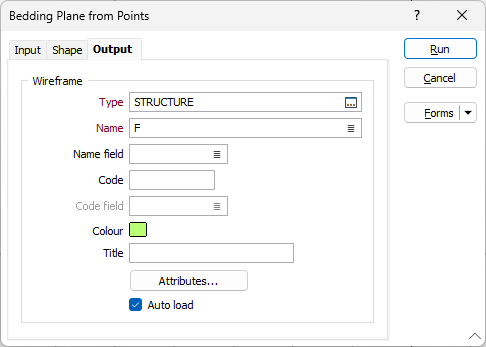

On the Output tab of the Bedding Plane from Points form, select the type and name of the output wireframe and specify its attributes.
Type and Name
Double-click (F3) to select the Type and Name of the output wireframe. A Type and a Name default are mandatory. A Name field may also be specified.
Code
Enter a Code that can be used to differentiate between the wireframes generated as a result of this process. If no Code Field has been assigned (or Code values are missing) from the Input file, the Code value you enter here will be assigned to the generated wireframes.
Colour
Double click (F3) to select the Colour that will be used to display the wireframe.
Title
Enter a meaningful Title for the wireframe you are creating.
Attributes
Click the Attributes button to set Wireframe Attributes for the wireframe output.
User-defined attributes may be mapped against the fields in the Input file. It is also possible to specify a default value for each attribute. Default values are used when a corresponding value in the Input file is either missing or is not mapped.
Auto load
Select this option to load the generated output in Vizex. The default draw style for an auto-loaded wireframe is 3D Shaded.
