Plot Forms

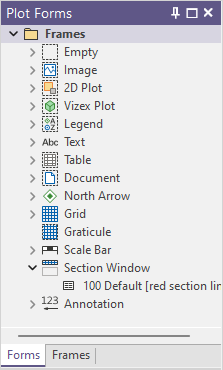

Use the Plot Forms pane to add a new frame to the layout window. Frames are the elements (Plots, Text, Images, Scale bars, Grids etc.) you can add to a layout. See: Working with plot frames

When you add a frame you can either Create a new frame (i.e. set the properties of the frame yourself) or Load a predefined frame.

For example, you can select a form set for a Text frame that defines the plot title, or the name and address of a client, or notes about the mine area shown in a plot.
