Records Below Hole Depth

On the Drillhole | Validate tab, in the Repair group: Click Repair Database to apply one or more repair options to a drillhole database file that contains validation errors.

In the Drillhole Database Repair form, enable the Records Below Hole Depth option in the Repair Options grid:

The Records Below Hole Depth error will most likely occur where drilling has been done below your planned collar total depth. The repair process will automatically fix drillhole surveys, intervals and events that are beyond the End of Hole Depth by increasing the collar total depth to accommodate the survey, interval or event depth.

To configure the repair process,

  1. Click the More button.

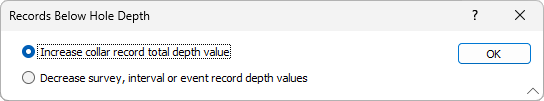

  1. Use the Repair Options to select:

    • Increase collar record total depth value to increase the total depth of the collar to repair the error, or

    • Decrease survey, interval or event record depth values to decrease the depth of the survey, interval or event records to repair the error.

  2. Click OK to return to the Drillhole Database Repair form.

  3. Use the Output options to select whether to overwrite the input database to be repaired, or enter the name of a database to write the new data to.

  4. Select the Flag Field option to enter a Flag Field and Flag value for the repair data to be written.

  5. Use the Report File option and select a file to write the report to (or leave the Auto default) if required.

Forms

Click the Forms button to select and open a saved form set, or if a form set has been loaded, save the current form set.

Run

Finally, click Run to begin the process.
