Import Nodes

Nodes (of Stockpiles, Crushers, Waypoints, BenchExits, LiftEntries, Chargers and Substations) can be imported from a CSV file.

  1. On the Network tab, select Import | Road / Cables | Nodes from CSV.

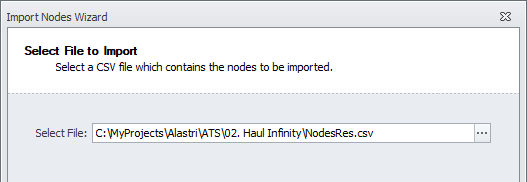

  2. Select a source file for the CSV import and click Next to continue.

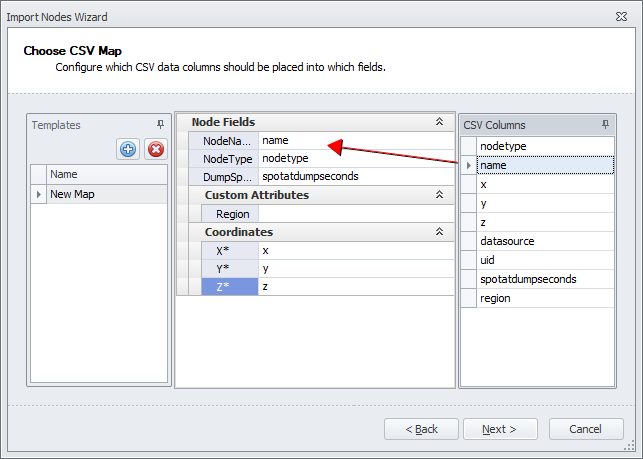

  1. You will be prompted to map the column headers in the file to Haul Infinity's property fields. This is saved as a CSV Map template for future use.

    You may drag and drop the CSV column headers into the node fields, or type in a default value directly.

    Complete the mapping of all mandatory fields.

    Click Next and wait for the import to complete.

  1. Make sure the right number of Nodes have been imported. Click Finish and select one of the imported nodes in the Viewport.

    1. Alternatively in the Nodes panel, group nodes by the DataSource, and select one of them.

    In the Properties panel, the DataSource field for the node will be the name of the CSV file from where the node was imported.
