Export Haul Cycles to XML

Haul Cycles can be exported to an XML file.

1. On the Network tab, select Export | Haul Cycles to XML.

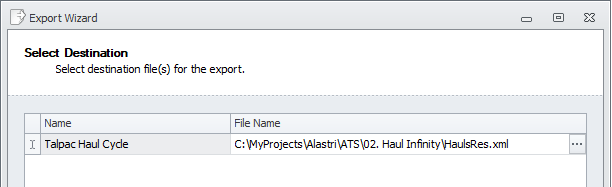

2. In the Export Wizard, select a destination directory for the export and click Next to continue. You can choose a file and overwrite it, or create a new file.



3. Select the Nodes to be exported and click Next to continue.

   1. Click on the column title to sort A-Z and Z-A,

   2. Drag a column header to the top section to group by that column.

   3. Use the Filter icon to filter out the export results by certain parameters (click the thumbnail to see an example:).

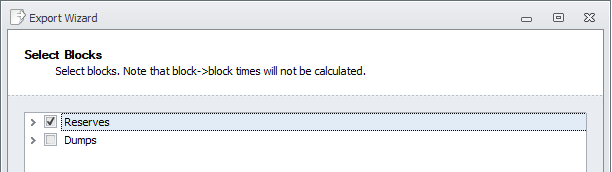

4. Select the Blocks to include in the export and click Next to continue. Note that “block to block” times will not be calculated.

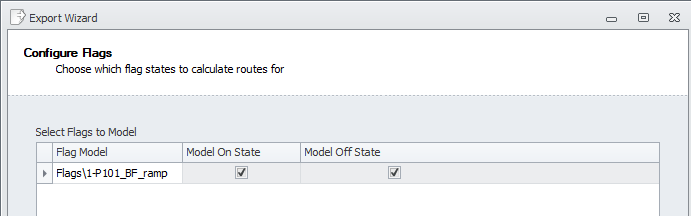

5. Choose the Flag states to calculate routes for and click Next to continue.



6. Wait for the export to complete and click Finish to exit the Wizard.
