Export Schedule Audit Times and Paths

Once the schedule has been reviewed, the results can be exported for use in cost modelling and fleet selection.

  1. From the Schedule Auditor tab, click the Export Schedule button. Navigate to the folder location you want to save to and name the file.


    2. Scheduler Auditor > Export Schedule

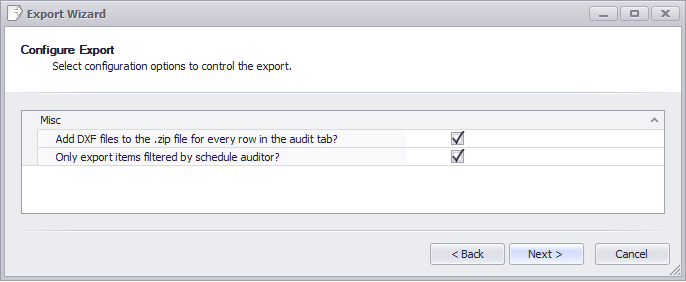

  1. Select from the following configuration options to control the export:

    2. Add DXF files to the .zip file for every row in the audit tab?

    Includes a dxf file for the haul path taken for each transaction.

    Only export items filtered by schedule auditor?

    Uses filters set in the Schedule Auditor to limit the exported data.

  1. Once the export is complete, click Finish to exit the Wizard.

  2. Unzip the generated archive and review the results.

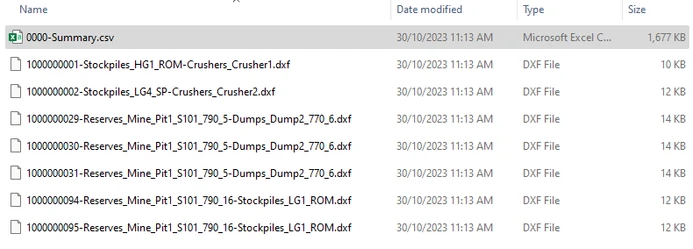

    If the ‘Add DXF Files’ option was selected, you’ll see a “0000-Summary.csv” file listing each Schedule path data and a dxf file for each of the exported transactions.


    Schedule Audit export results with dxf files for each transaction
