Subtract Polygons

On the Shape tab, in the Split/Merge group: Click Subtract Polygons to subtract one or more polygons from another polygon or set of polygons. (Ctrl+P,P)

Do the following:

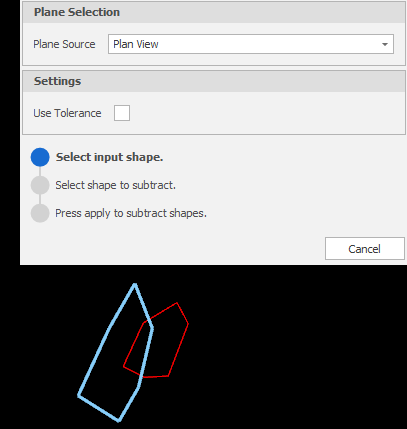

1. Choose a screen plane. Note that this will be used as the subtraction plane.

   Plan	Use Plan View (looking top down).
   Camera	Use the current Camera view.

   * The current plane of the view in the Design Window is not changed.

2. (Optional) Select the Use Tolerance check box to apply a tolerance to the operation. Enter (or use the increment controls to specify) a Tolerance value.



3. Select the input shape:

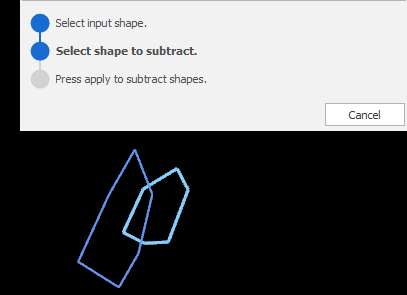

4. Select the shape to subtract:

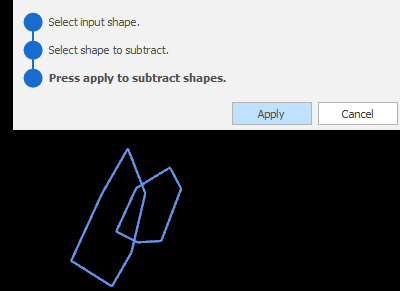

5. Finally, click Apply to perform the subtraction:



   Check that the result of the operation is what you expect. If necessary, use CTRL+Z to undo.
