Generate Z from Wireframe

On the Design tab, in the Editing group: Select Drape | Generate Z Values to replace the Z values for all points with the wireframe Z value at each XY location. In the case of strings, no (new) intermediate points are generated. Draped Z values are written to the Input file.

This tool is also available on the Mining | Underground Design tab, in the Wireframes group.

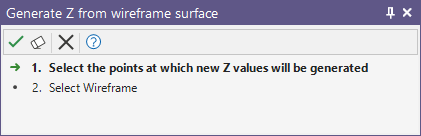

1. Select the points at which new Z values will be generated:

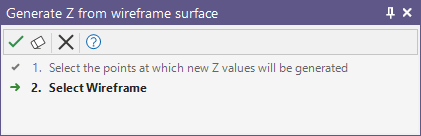

2. Select the wireframe from which to generate the Z values:

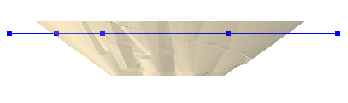

Before:

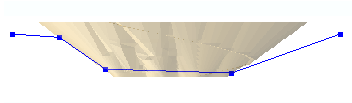

After:
