Run Stope Optimiser

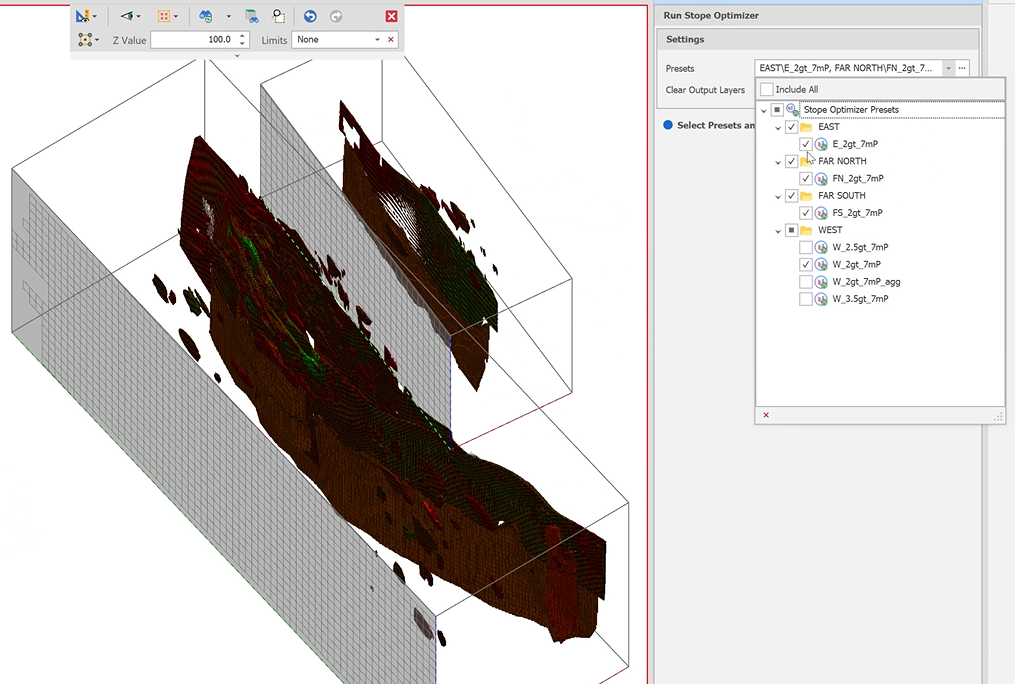

In the Design Action panel, in the Settings group, select one or more presets to run. Alternatively, click the Include All check box and deselect the presets you don't want to run.
The frameworks associated with each preset are highlighted in the display.
Clear Output Layers
Select this check box if you have previous results from the same preset runs that you want to clear.
Apply
Click Apply to run the optimisation. This may take some time, depending on the number of framework/presets you have selected. The Status bar will indicate the number of presets being run and which preset is currently running.

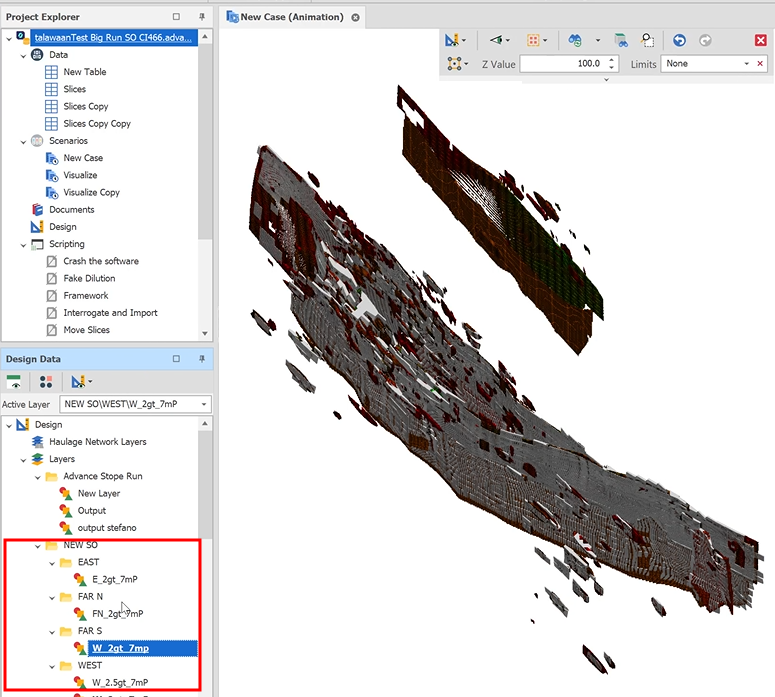

In the embedded Design Data panel, open the output layers created for each of the framework/presets you selected.

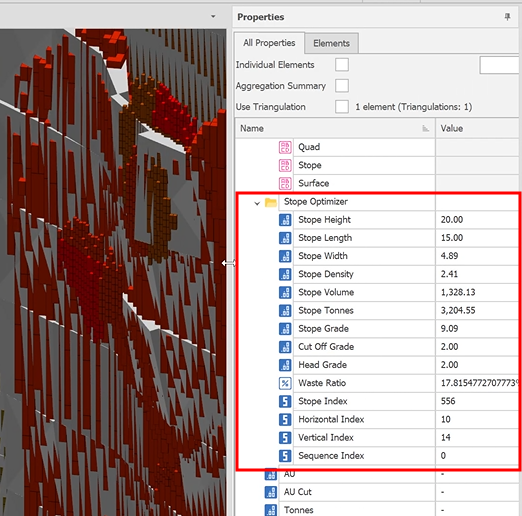

If you click on a stope solid, in the Properties panel, you can view the stope attributes that were populated during the optimisation.
The Stope Index is a unique identifier assigned to each stope solid. Horizontal Index, Vertical Index, Sequence Index attributes are created which allow you to apply offsets and sequence the stopes as part of scheduling.
To setup the design frameworks and presets needed for stope optimisation, see:
